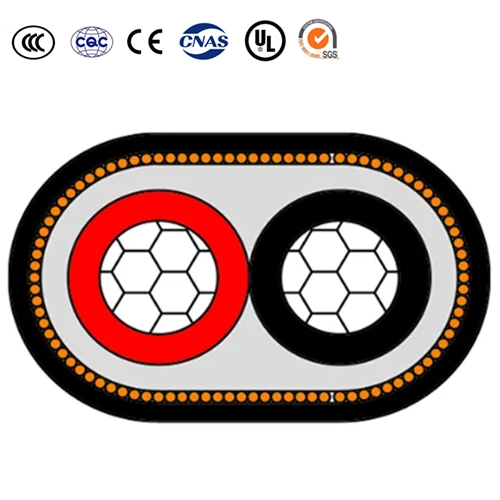

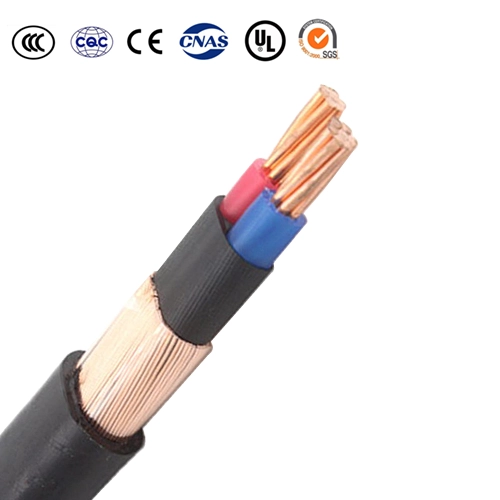

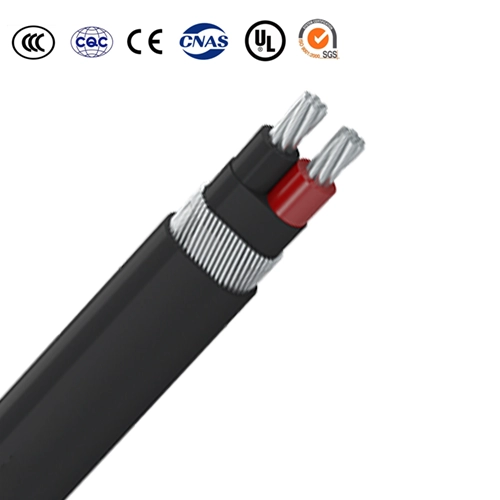

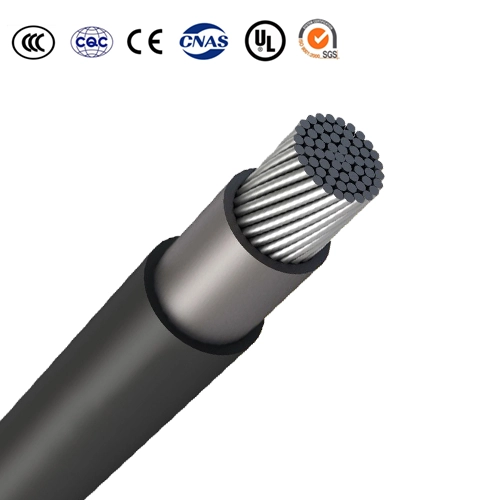

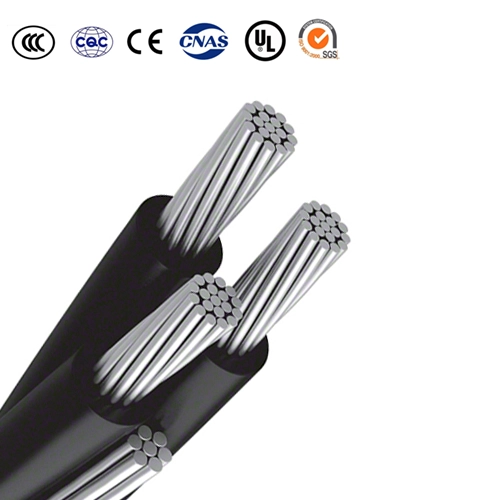

Service Concentric Cables

Concentric Cables With Copper Or Aluminum Conductors
600V Service Cable

Application

The Service Concentric Cables used at voltages of 600 volts and at conductor temperatures not to exceed 70°C for polyethylene (PE) and Polyvinyl chloride (PVC) insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

● Conductor:Copper/Aluminum/8000 series Aluminum Alloy/Copper clad Aluminum
● Insulation: XLPE/PVC/PE
● Concentric Neutral:Copper/Aluminum/8000 series Aluminum Alloy/Copper clad Aluminum
● Sheath: PVC/XLPE/PE

Specifications

● SANS 1507-6 Electric cables with extruded solid dielectric insulation for fixed installations (300/500 V to 1 900/3 300 V) Part 6: Service cables
● UL44 Standard For Safety Thermoset-Insulated Wires and Cables
● UL854 Standard For Safety Service-Entrance Cables
● PIESA 1062 Concentric Single-Phase Aerial Service Cable – For Domestic Service Connections With a Combined Neutral-Earth Conductor
● IEC 60502-1 Power Cables With Extruded Insulation And Their Accessories For Rated Voltages From 1 kV (Um = 1.2 kV) Up To 30 kV (Um = 36 kV) –Part 1: Cables For Rated Voltages Of 1 kV (Um = 1.2 kV) And 3 kV (Um = 3.6 kV)
● KS 04-1022 Kenya Standard Specification For 600/1000V PVC-Insulated Single-Phase Concentric Cables With Copper Or Aluminum Conductors For Electricity Supply

Parameter

AAAC-8000/XLPE/UV-XLPE UL854

Size	Phase conductor			Inner sheath*	Neutral conductor		Polyester tape	Outer sheath	Approx. Overall dia.	Nominal D.C resistance at 20℃
Size	No. of wire	Dia. of wire	Nominal Insulation thickness	Nominal thickness	No. of wire	Dia. of wire	Nominal thickness	Nominal thickness	Approx. Overall dia.	Nominal D.C resistance at 20℃
No. / AWG	No.	mm	mm	mm	No.	mm	mm	mm	mm	Ω/km
2 × #8	7	1.234	1.14	–	25	0.653	0.10	1.14	9.6	3.4464
2 × #6	7	1.555	1.14	–	25	0.813	0.10	1.14	11.1	2.1684
2 × #4	7	1.961	1.14	–	26	1.024	0.10	1.14	12.7	1.3633
3 × #6	7	1.56	1.14	1.0	65	0.511	0.10	1.52	13.5×20.4	2.1684
3 × #4	7	1.961	1.14	1.0	65	0.643	0.10	2.03	16.0×24.1	1.3633
3 × #2	7	2.474	1.14	1.0	65	0.813	0.10	2.03	17.8×27.5	0.8573
4 × #4	7	1.961	1.14	1.0	65	0.643	0.10	1.52	24.4	1.3633
4 × #2	7	2.474	1.14	1.0	65	0.813	0.10	2.03	29.1	0.8573
*：Two options based on client requirement, a) wrapping tape b) extrusion PVC inner sheath

AAAC-8000/XLPE/UV-PVC & CU/XLPE/UV-PVC UL44

Size	Phase conductor			Inner sheath*	Neutral conductor		Polyester tape	Outer sheath	Approx. Overall dia.	Nominal D.C resistance at 20℃
Size	No. of wire	Dia. of wire	Nominal Insulation thickness	Nominal thickness	No. of wire	Dia. of wire	Nominal thickness	Nominal thickness	Approx. Overall dia.	Nominal D.C resistance at 20℃
No. / AWG	No.	mm	mm	mm	No.	mm	mm	mm	mm	Ω/km
2 × #8	7	1.234	1.52	–	14	0.873	0.09	1.52	11.7	3.4464
3 × #6	7	1.555	1.52	1.0	20	1.070	0.09	1.52	13.5×20.4	2.1684
*：Two options based on client requirement, a) wrapping tape b) extrusion PVC inner sheath

CU/XLPE/UV-PVC

Size	Phase conductor			Inner sheath*	Neutral conductor		Polyester tape	Outer sheath	Approx. Overall dia.	Nominal D.C resistance at 20℃
Size	No. of wire	Dia. of wire	Nominal Insulation thickness	Nominal thickness	No. of wire	Dia. of wire	Nominal thickness	Nominal thickness	Approx. Overall dia.	Nominal D.C resistance at 20℃
No. / AWG	No.	mm	mm	mm	No.	mm	mm	mm	mm	Ω/km
2 × #8	7	1.234	1.14	–	25	0.653	0.09	1.14	9.6	2.10
3 × #8	7	1.234	1.14	1.0	65	0.405	0.09	1.14	15×19	2.10
3 × #6	7	1.555	1.14	1.0	65	0.511	0.09	1.52	16×20	1.32
3 × #4	7	1.961	1.14	1.0	65	0.643	0.09	1.52	18×22	0.830
*：Two options based on client requirement, a) wrapping tape b) extrusion PVC inner sheath

Aluminum/PVC/UV-PVC KS 04-1022

Size	Phase conductor			Neutral conductor	Polyester tape	Outer sheath	Approx. Overall dia.	Ma.D.C resistance at 20℃
	Size	No. of wire	Nominal Insulation thickness	Size	Nominal thickness	Nominal thickness		Ma.D.C resistance at 20℃
	Size	No. of wire	Nominal Insulation thickness	Size	Nominal thickness	Nominal thickness		Phase	Neutral Communication
No. / mm²	mm²	No.	mm	mm²	mm	mm	mm	Ω/km	Ω/km
1×10+23	10	7	1.55	23	0.05	1.4	12.21	3.08	1.335
1×16+26	16	7	1.55	26	0.05	1.4	13.34	1.91	1.808
1×25+29	25	7	1.60	29	0.05	1.5	14.88	1.20	1.0586
1×35+38.6	35	19	1.65	38.6	0.05	1.6	16.75	0.868	0.7966

CU/XLPE/UV-PE PIESA 1062

Size	Phase conductor			Neutral Conductor Size	Concentric wires		Polyester tape	Outer sheath	Approx. Overall dia.	Ma.D.C resistance at 20℃
	Size	No. of wire	Nominal Insulation thickness		No. of cores	Dia. of wire	Nominal thickness	Nominal thickness		Ma.D.C resistance at 20℃
	Size	No. of wire	Nominal Insulation thickness		No. of cores	Dia. of wire	Nominal thickness	Nominal thickness		Phase	Neutral	Communication
No. / mm²	mm²	No.	mm	mm²	No.	mm	mm	mm	mm	Ω/km	Ω/km	Ω/km
2×4	4	7	0.7	4	2	0.8	0.05	1.4	10.2	4.75	4.61	35
2×6	6	7	0.7	6	2	0.8	0.05	1.4	10.8	3.18	3.08	35
2×10	10	7	0.7	10	2	0.8	0.05	1.4	12.0	1.89	1.83	35
2×16	16	7	0.7	16	2	0.8	0.05	1.4	13.0	1.19	1.15	35
4*×4	4	7	0.7	4	2	0.8	0.05	1.6	15.0	4.75	4.61	35
4*×6	6	7	0.7	6	2	0.8	0.05	1.6	16.5	3.18	3.08	35
4*×10	10	7	0.7	10	2	0.8	0.05	1.6	18.5	1.89	1.83	35
4*×16	16	7	0.7	16	2	0.8	0.05	1.6	21.0	1.19	1.15	35
Note： phase conductor shall be hard drawn copper; Neutral conductor shall be annealed copper and insulated or non-insulated as required; Concentric wires shall be annealed copper and insulated; *：Inner sheath of multi-core cable,two options based on client requirement, a) wrapping tape b) extrusion PVC inner sheath;

PDF Download

Why Choose Us

Contact Us Immediately

Contact Us

Product Category

hot-sale product

Phase conductor: Aluminum, class 2,circular compacted conductors
Phase conductor screen: Non-metallic,semi-conducting compound
Phase insulation:Cross-linked polyethylene(XLPE)
Phase insulation screen:Non-metallic,semi-conducting compound,extruded strippable grooved elastomer
Phase longitudinal water tightness: Swelling powder
Phase metallic screen: Aluminium plastic tape (AL/PET）
Phase outer sheath: Polyethylene (PE)
Messenger conductor: Stranded galvanized steel wires
Messenger insulation: Polyethylene (PE)Specification

CU/XLPE, AAC/XLPE, AAAC/XLPE
CU/PE, AAC/PE, AAAC/PE, CU/XLPE, AAC/XLPE, AAAC/XLPE
AAC/XLPE, AAAC/XLPE

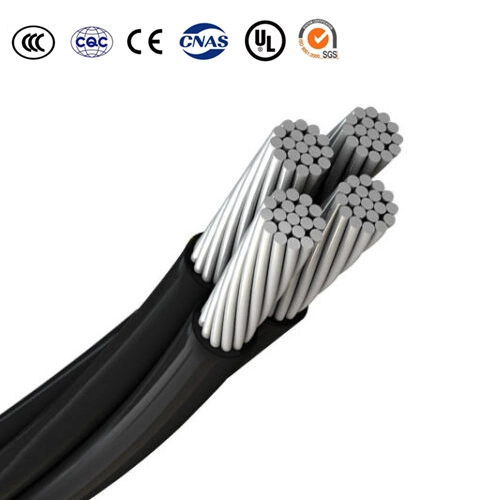

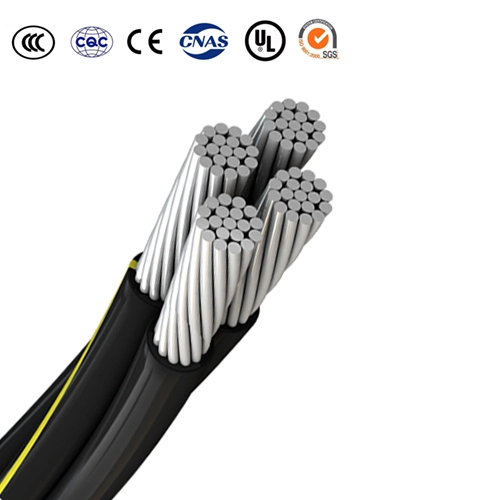

ABC Cable (Aerial Bundled Cable) Supplier/Manufacturer
LV MV Aerial Bundle Cables (ABC)
Aluminum (or Aluminum Alloy)stranded conductor (compacted),
XLPE (or HDPE) insulated,
AAC messenger core (AAAC or ACSR or Galvanized steel wire messenger core, bare or covered)
Twisted (or parallel) power cable
And we can still produce the cables according to the request or customers.

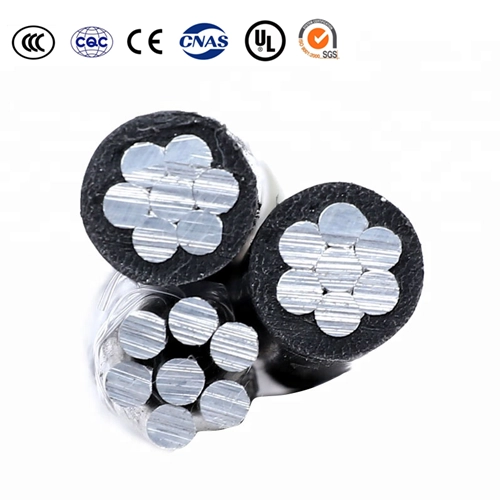

Cable Torsadé Aluminium; Câble Torsadé Aérien; Câble électrique Aérien
