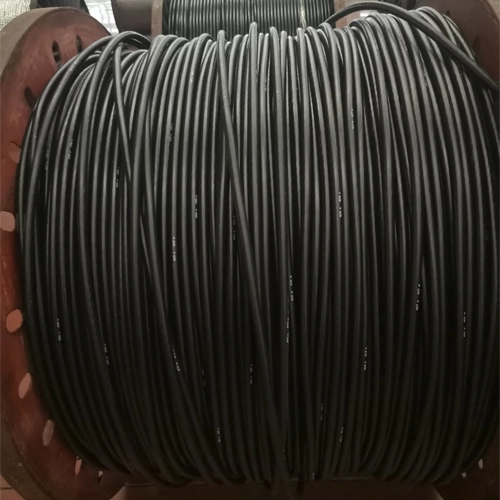

Overhead Insulated Covered Line Wire (ICEA S-70-547)

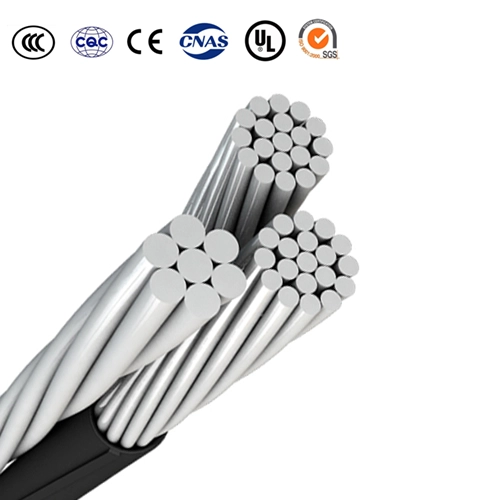

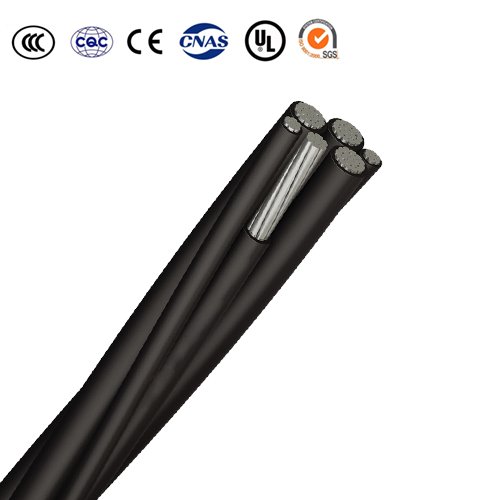

Aerial Bundled Cable (NFC 33-209)

Cable Torsadé Aluminium; Câble Torsadé Aérien; Câble électrique Aérien

Phase Conductor: Aluminium conductor, round stranded compressed (RM).
Neutral Conductor: Alloy aluminium conductor (AlMgSi), round stranded compressed (RM).
Insulation: XLPE. Load-bearing / neutral core – marked with standard and producers phase core – marked with digits 1, 2, 3.
Assembly: Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded.

Application

Cable Aérien Torsadé NFC 33-209 insulated cable assembled with harness for overhead network, with rated voltage of 0.6/1kV.

Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 0.6/1kV and at conductor temperatures not to exceed 90°C for cross-linked polyethylene (XLPE) insulated conductors.

Construction
Conductor: Stranded,Circular compacted ,Circular compressed AAC or AAAC.
Insulation: Cross-linked polyethylene (XLPE),Black color,Weather and UV resistant.

Specifications

NFC 33-209 insulated cable assembled with harness for overhead network, with rated voltage of 0.6/1kV

PHASE CONDUCTOR	Aluminium conductor, round stranded compressed (RM).
NEUTRAL CONDUCTOR	Alloy aluminium conductor (AlMgSi), round stranded compressed (RM).
INSULATION	XLPE. Load-bearing / neutral core – marked with standard and producers phase core – marked with digits 1, 2, 3.
ASSEMBLY	Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded.

Parameter

NUMBER OF CORES X NOMINAL CROSS SECTION	MAX. CONDUCTOR- RESISTANCE	MIN. BREAKING LOAD OF CONDUCTOR STRAND	CURRENT RATING IN THE AIR	OUTER DIAMETER	TOTAL WEIGHT
MM²	OHM/KM	KN	A	MM	KG/KM
2×10 RM	3.080	1.5	38	12.8	93
4×10 RM	3.080	1.5	38	15.4	183
2×16 RM	1.910	2.3	72	14.8	129
2×16 RN + 2×1.5 RE	1.910/12.100	2.3	72	14.8	176
4×16 RM	1.910	2.3	72	17.8	257
4×16 RN + 2×1.5 RE	1.910/12.100	2.3	72	17.8	304
2×25 RM	1.200	3.8	107	18.0	202
2×25 RM + 2×1,5 RE	1.200/12.100	3.8	107	18.0	249
4×25 RM	1.200	3.8	107	21.7	404
4×25 RM + 2×1,5 RE	1.200/12.100	3.8	107	21.7	451
2×35 RM	0.868	5.2	132	20.8	269
2×35 RM + 2×1,5 RE	0.868/12.100	5.2	132	20.8	316
4×35 RM	0.868	5.2	132	25.1	539
4×35 RM + 2×1,5 RE	0.868/12.100	5.2	132	25.1	586
2×50 RM	0.641	7.6	165	23.4	352
2×50 RM + 2×1,5 RE	0.641/12.100	7.6	165	23.4	399
1×54.6 RM + 3×25 RM	0.630/1.200	3.8	107	21.7	507
1×54.6 RM + 3×25 RM + 1×16 RM	0.630/1.200/1.910	3.8/2.3	107/72	24.3	573
1×54.6 RM + 3×25 RM + 2×16 RM	0.630/1.200/1.910	3.8/2.3	107/72	29.7	639
1×54.6 RM + 3×25 RM + 3×16 RM	0.630/1.200/1.910	3.8/2.3	107/72	31.1	705
1×54.6 RM + 3×35 RM	0.630/0.868	5.2	132	25.1	615
1×54.6 RM + 3×35 RM + 1×16 RM	0.630/0.868/1.910	5.2/2.3	132/72	28.1	680
1×54.6 RM + 3×35 RM + 2×16 RM	0.630/0.868/1.910	5.2/2.3	132/72	34.3	748
1×54.6 RM + 3×35 RM + 3×16 RM	0.630/0.868/1.910	5.2/2.3	132/72	35.9	814
1×54.6 RM + 3×35 RM + 1×25 RM	0.630/0.868/1.200	5.2/3.8	132/107	28.1	714
1×54.6 RM + 3×50 RM	0.630/0.641	7.6	165	28.2	741
1×54.6 RM + 3×50 RM + 1×16 RM	0.630/0.641/1.910	7.6/2.3	165/72	31.6	806
1×54.6 RM + 3×50 RM + 2×16 RM	0.630/0.641/1.910	7.6/2.3	165/72	38.6	875
1×54.6 RM + 3×50 RM + 3×16 RM	0.630/0.641/1.910	7.6/2.3	165/72	40.4	940
1×54.6 RM + 3×50 RM + 1×25 RM	0.630/0.641/1.200	7.6/3.8	165/107	31.6	841
1×54.6 RM + 3×70 RM	0.630/0.443	10.2	205	33.0	950
1×54.6 RM + 3×70 RM + 1×16 RM	0.630/0.443/1.910	10.2/2.3	205/72	37.0	1014
1×54.6 RM + 3×70 RM + 2×16 RM	0.630/0.443/1.910	10.2/2.3	205/72	45.2	1083
1×54.6 RM + 3×70 RM + 3×16 RM	0.630/0.443/1.910	10.2/2.3	205/72	47.3	1148
1×54.6 RM + 3×70 RM + 1×25 RM	0.630/0.443/1.200	10.2/3.8	205/107	37.0	1048
1×54.6 RM + 3×70 RM + 2×25 RM	0.630/0.443/1.200	10.2/3.8	205/107	45.2	1150
1×54.6 RM + 3×70 RM + 3×25 RM	0.630/0.443/1.200	10.2/3.8	205/107	47.3	1250
1×54.6 RM + 3×95 RM	0.630/0.320	13.5	240	37.4	1176
1×54.6 RM + 3×95 RM + 1×16 RM	0.630/0.320/1.910	13.5/2.3	240/72	41.9	1243

other cross-sections on request

NFC 33-209 Insulated Cable

Number of Cores x Nominal Cross Section	Overal Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.x mm^2	mm	Kg/Km	Ω/Km	KN	A
2×10 RM	12.8	93	3.08	1.5	38
4×10 RM	15.4	183	3.08	1.5	38
2×16 RM	14.8	129	1.91	2.3	72
2×16 RN + 2×1.5 RE	14.8	176	1.910/12.100	2.3	72
4×16 RM	17.8	257	1.91	2.3	72
4×16 RN + 2×1.5 RE	17.8	304	1.910/12.100	2.3	72
2×25 RM	18	202	1.2	3.8	107
2×25 RM + 2×1.5 RE	18	249	1.200/12.100	3.8	107
4×25 RM	21.7	404	1.2	3.8	107
4×25 RM + 2×1.5 RE	21.7	451	1.200/12.100	3.8	107
2×35 RM	20.8	269	0.868	5.2	132
2×35 RM + 2×1.5 RE	20.8	316	0.868/12.100	5.2	132
4×35 RM	25.1	539	0.868	5.2	132
4×35 RM + 2×1.5 RE	25.1	586	0.868/12.100	5.2	132
2×50 RM	23.4	352	0.641	7.6	165
2×50 RM + 2×1.5 RE	23.4	399	0.641/12.100	7.6	165
1×54.6 RM + 3×25 RM	21.7	507	0.630/1.200	3.8	107
1×54.6 RM + 3×25 RM + 1×16 RM	24.3	573	0.630/1.200/1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 2×16 RM	29.7	639	0.630/1.200/1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 3×16 RM	31.1	705	0.630/1.200/1.910	3.8/2.3	107/72
1×54.6 RM + 3×35 RM	25.1	615	0.630/0.868	5.2	132
1×54.6 RM + 3×35 RM + 1×16 RM	28.1	680	0.630/0.868/1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 2×16 RM	34.3	748	0.630/0.868/1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 3×16 RM	35.9	814	0.630/0.868/1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 1×25 RM	28.1	714	0.630/0.868/1.200	5.2/3.8	132/107
1×54.6 RM + 3×50 RM	28.2	741	0.630/0.641	7.6	165
1×54.6 RM + 3×50 RM + 1×16 RM	31.6	806	0.630/0.641/1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 2×16 RM	38.6	875	0.630/0.641/1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 3×16 RM	40.4	940	0.630/0.641/1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 1×25 RM	31.6	841	0.630/0.641/1.200	7.6/3.8	165/107
1×54.6 RM + 3×70 RM	33	950	0.630/0.443	10.2	205
1×54.6 RM + 3×70 RM + 1×16 RM	37	1014	0.630/0.443/1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 2×16 RM	45.2	1083	0.630/0.443/1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 3×16 RM	47.3	1148	0.630/0.443/1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 1×25 RM	37	1048	0.630/0.443/1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 2×25 RM	45.2	1150	0.630/0.443/1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 3×25 RM	47.3	1250	0.630/0.443/1.200	10.2/3.8	205/107
1×54.6 RM + 3×95 RM	37.4	1176	0.630/0.320	13.5	240
1×54.6 RM + 3×95 RM + 1×16 RM	41.9	1243	0.630/0.320/1.910	13.5/2.3	240/72

AAC/XLPE Cable Aérien Torsadé NFC 33-209

No. of Cores and Section	No. of Wires	Nominal Insulation Thickness	Approx. Diameter of Cable	Max. DC. Resistance at 20℃	Approx. Weight
mm²	No.	mm	mm	Ω/km	kg/km
2×16	7	1.2	14.4	1.91	131
2×25	7	1.4	17.6	1.20	200
2×35	7	1.6	20.4	0.868	273
2×50	7	1.6	22.6	0.641	350
2×70	12	1.8	26.8	0.443	495
2×95	19	1.8	30.4	0.320	656
2×120	19	1.8	32.8	0.253	799
4×16	7	1.2	17.4	1.91	262
4×25	7	1.4	21.3	1.20	399
4×35	7	1.6	24.7	0.868	547
4×50	7	1.6	27.3	0.641	699
4×70	12	1.8	32.4	0.443	990
4×95	19	1.8	36.8	0.320	1311
4×120	19	1.8	39.7	0.253	1597

AAC/XLPE+AAAC/XLPE Cable Aérien Torsadé NFC 33-209

No. of Cores and Section	No. of Wires		Nominal Insulation Thickness		Approx. Diameter of Cable	Max. DC. Resistance at 20℃		Approx. Weight
No. of Cores and Section	Phase	Neutral	Phase	Neutral	Approx. Diameter of Cable	Phase	Neutral	Approx. Weight
mm²	No.	No.	mm	mm	mm	Ω/km	Ω/km	kg/km
1×25+1×54.6	7	7	1.4	1.6	21.3	1.20	0.63	309
1×35+1×54.6	7	7	1.6	1.6	22.7	0.868	0.63	345
1×50+1×54.6	7	7	1.6	1.6	23.8	0.641	0.63	384
1×70+1×54.6	12	7	1.8	1.6	25.9	0.443	0.63	456
1×95+1×54.6	19	7	1.8	1.6	27.7	0.320	0.63	537
1×70+1×70	12	7	1.8	1.6	26.7	0.443	0.50	491
1×95+1×70	19	7	1.8	1.6	28.5	0.320	0.50	571
1×120+1×70	19	7	1.8	1.6	29.7	0.253	0.50	643
1×120+1×95	19	19	1.8	1.6	31.9	0.253	0.343	737
1×150+1×95	19	19	1.8	1.6	33.6	0.206	0.343	819
3×25+1×54.6	7	7	1.4	1.6	23.5	1.20	0.63	508
3×35+1×54.6	7	7	1.6	1.6	26.1	0.868	0.63	619
3×50+1×54.6	7	7	1.6	1.6	28.1	0.641	0.63	733
3×70+1×54.6	12	7	1.8	1.6	31.9	0.443	0.63	951
3×95+1×54.6	19	7	1.8	1.6	35.2	0.320	0.63	1192
3×70+1×70	12	7	1.8	1.6	32.4	0.443	0.50	986
3×95+1×70	19	7	1.8	1.6	35.6	0.320	0.50	1227
3×120+1×70	19	7	1.8	1.6	37.8	0.253	0.50	1441
3×120+1×95	19	19	1.8	1.6	39.1	0.253	0.343	1536
3×150+1×95	19	19	1.8	1.6	42.2	0.206	0.343	1779

AAC/XLPE+AAAC/XLPE+AAC/XLPE Cable Aérien Torsadé NFC 33-209

No. of Cores and Section	No. of Wires			Nominal Insulation Thickness			Approx. Diameter of Cable	Max. DC. Resistance at 20℃			Approx. Weight
No. of Cores and Section	Phase	Neutral	Street Light	Phase	Neutral	Street Light	Approx. Diameter of Cable	Phase	Neutral	Public lighting	Approx. Weight
mm²	No.	No.	No.	mm	mm	mm	mm	Ω/km	Ω/km	Ω/km	kg/km
3×25+1×54.6+1×16	7	7	7	1.4	1.6	1.2	30.1	1.20	0.63	1.91	571
3×35+1×54.6+1×16	7	7	7	1.6	1.6	1.2	32.9	0.868	0.63	1.91	682
3×50+1×54.6+1×16	7	7	7	1.6	1.6	1.2	35.1	0.641	0.63	1.91	797
3×70+1×54.6+1×16	12	7	7	1.8	1.6	1.2	39.3	0.443	0.63	1.91	1014
3×70+1×54.6+1×25	12	7	7	1.8	1.6	1.4	39.3	0.443	0.63	1.20	1049
3×70+1×70+1×16	12	7	7	1.8	1.6	1.2	40.1	0.443	0.50	1.91	1049
3×95+1×70+1×16	19	7	7	1.8	1.6	1.2	43.7	0.320	0.50	1.91	1290
3×120+1×70+1×16	19	7	7	1.8	1.6	1.2	46.1	0.253	0.50	1.91	1504
3×120+1×95+1×16	19	19	7	1.8	1.6	1.2	48.3	0.253	0.343	1.91	1598
3×150+1×95+1×16	19	19	7	1.8	1.6	1.2	51.7	0.206	0.343	1.91	1842
3×25+1×54.6+2×16	7	7	7	1.4	1.6	1.2	30.1	1.20	0.63	1.91	637
3×35+1×54.6+2×16	7	7	7	1.6	1.6	1.2	32.9	0.868	0.63	1.91	748
3×50+1×54.6+2×16	7	7	7	1.6	1.6	1.2	35.1	0.641	0.63	1.91	862
3×70+1×54.6+2×16	12	7	7	1.8	1.6	1.2	39.3	0.443	0.63	1.91	1080
3×70+1×54.6+2×25	12	7	7	1.8	1.6	1.4	39.3	0.443	0.63	1.20	1148
3×70+1×70+2×16	12	7	7	1.8	1.6	1.2	40.1	0.443	0.50	1.91	1114
3×95+1×70+2×16	19	7	7	1.8	1.6	1.2	43.7	0.320	0.50	1.91	1356
3×120+1×70+2×16	19	7	7	1.8	1.6	1.2	46.1	0.253	0.50	1.91	1570
3×120+1×95+2×16	19	19	7	1.8	1.6	1.2	48.3	0.253	0.343	1.91	1664
3×150+1×95+2×16	19	19	7	1.8	1.6	1.2	51.7	0.206	0.343	1.91	1907

Phase or neutral or public lighting+Neutral+Pilot Cable Aérien Torsadé NFC 33-209

Designation		Conductor					Average Thickness of Insulation (prescribed value)	Core Outside Diameter
Nature	Nominal Section	No. of Wires	Max. DC Resistance at 20 0C	Conductor Diameter		Breaking Force	Average Thickness of Insulation (prescribed value)	Core Outside Diameter
	(mm²)	No.	（Ω/km）	Min. (mm)	Max. (mm)	Min. (daN)	(mm)	Min. (mm)	Max. (mm)
Phase or neutral or public lighting	16	7	1.91	4.6	5.1	190	1.2	7.0	7.8
	25	7	1.20	5.8	6.3	300	1.4	8.6	9.4
	35	7	0.868	6.8	7.3	—	1.6	10.0	10.9
	50	7	0.641	7.9	8.4	—	1.6	11.1	12.0
	70	12	0.443	9.7	10.2	—	1.8	13.3	14.2
	95	19	0.320	11.0	12.0	—	1.8	14.6	15.7
	120	19	0.253	12.0	13.1	—	1.8	15.6	16.7
	150	19	0.206	13.9	15.0	—	1.8	17.3	18.6
Neutral	54.6	7	0.63	9.2	9.6	1660	1.6	12.3	13.0
	70	7	0.50	10.0	10.2	2050	1.6	12.9	13.6
	95	19	0.343	12.2	12.9	2750	1.6	15.3	16.3
Pilot	1.5	1	12.1	—	1.5	—	1.2	3.7	4.2
