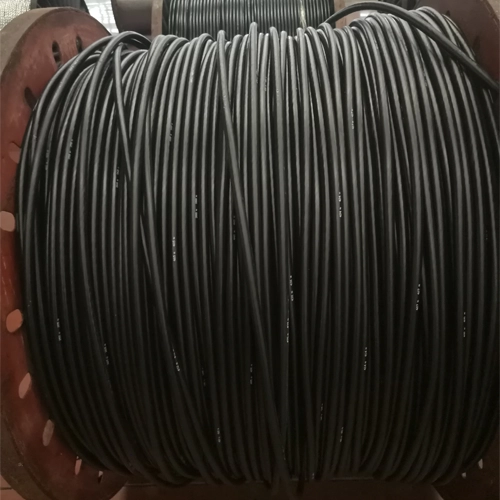

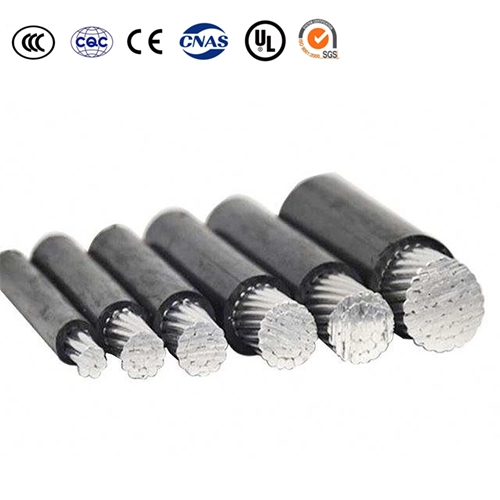

Overhead Insulated Covered Line Wire (ICEA S-70-547)

Covered Line Wire
Covered Line Wire
Overhead Insulated Covered Line Wire (ICEA S-70-547)
Overhead Insulated Covered Line Wire (ICEA S-70-547)
Overhead Insulated Covered Line Wire (ICEA S-70-547)

Overhead Insulated Covered Line Wire (ICEA S-70-547)

CONDUCTOR: Single Conductor compressed or concentric HD aluminum, aluminum alloy, or ACSR

COVERING: Black, Linear Low-Density Polyethylene (LLDPE)

black extruded Cross-linked Polyethylene (XLPE)

Black Polyethylene (PE)

Medium-Density Polyethylene (MDPE)

High-Density Cross-linked Polyethylene (HDXLPE)

Send Email
Get Latest Price

Application



Overhead Insulated Covered Line Wire (ICEA S-70-547). These conductors are intended primarily for the distribution of electrical energy under normal conditions of overhead(aerial)installations and service outdoors.

Covered Line Wire is used primarily for overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed.
Single Conductor Covered Line Wire is intended for use in overhead distribution circuits operating at primary or secondary voltages. The covering provides circuit protection against momentary contact with other conductors or trees. Because the covering carries no voltage rating, the conductors must be installed on insulators adequate for the intended service voltage. The user should consider the dielectric compatibility of the covering, insulator and conductor/insulator tie.

The conductors are stranded, circular compressed or uncompressed aluminum, copper, aluminum-alloy, ACSR or ACSR/AW etc., concentrically stranded and covered for Weather or UV resistant with thermoplastic polyethylene (PE) or Cross linked polyethylene (XLPE) in black.





Specifications

● ICEA S-61-402 Aluminum Covered Line Wire Weatherproof
● ANSI / ICEA S-70-574 Weather-Resistant Polyethylene Covered Conductors
● ASTM B-230- Aluminum 1350-H19 Wire for Electrical Purposes.
● ASTM B 231 Class AA, A, or B Stranded Aluminum 1350 (Excluding Unilay Compressed)
● ASTM B 400 Compact-Round Stranded Aluminum 1350 Conductors.
● ASTM B 399 Class AA, or A Stranded Aluminum-Alloy 6201 T-81 Conductors.
● ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
● ASTM B 549 Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced (ACSR/AW)
● NEMA PUB NO.WC 5-1973-Standards Publication Thermoplastic Insulated Wire and Cable for the Transmission and Distribution of Electrical Energy.
● ASTM C-8.35- Specifications for Weather-resistant Polyethylene-Covered Wire and Cable.

Parameter

Weather-Resistant Polyethylene Covered Conductor ICEA S-70-547

Code Word Conductor Size No. of Wires Nominal Thickness of covering Approx. Diameter of cable Approx.Weight
kcmil (AWG) No. mm mm kg/km
AAC/XLPE
Prune 10.38 (10) 1 0.76 4.1 22
Cumquat 16.51(8) 1 0.76 4.8 32
Apple 26.24(6) 1 0.76 5.6 48
Plum 26.24(6) 7 0.76 6.2 52
Pear 41.74(4) 1 0.76 6.7 72
Apricot 41.74(4) 7 0.76 7.4 78
Cherry 66.36(2) 1 1.14 8.8 120
Peach 66.36(2) 7 1.14 9.7 130
Nectarine 83.69(1) 7 1.14 10.6 159
Quince 105.6(1/0) 7 1.52 12.4 209
Haw 105.6(1/0) 19 1.52 12.5 205
Orange 133.1(2/0) 7 1.52 13.5 256
Ironwood 133.1(2/0) 19 1.52 13.7 251
Fig 167.8(3/0) 7 1.52 14.8 314
Lemon 167.8(3/0) 19 1.52 15.0 308
Olive 211.6(4/0) 7 1.52 16.3 387
Pomegranate 211.6(4/0) 19 1.52 16.4 378
Sassafras 250 19 1.52 17.6 440
Catalpa 250 19 2.03 18.6 468
Mulberry 266.8 19 1.52 18.1 467
Silverbelt 266.8 19 2.03 19.1 496
Basswood 300 19 1.52 19.0 520
Sycamore 300 19 2.03 20.0 549
Anona 336.4 19 1.52 19.9 578
Crabapple 336.4 19 2.03 21.0 609
Chinquapin 350 19 1.52 20.3 599
Ginkgo 350 19 2.03 21.3 631
Molles 397.5 19 2.03 22.4 708
Ash 400 19 2.03 22.5 712
Sumac 450 37 2.03 23.7 783
Citron 477 19 2.03 24.2 834
Huckleberry 477 37 2.03 24.2 825
Tupelo 500 37 2.03 24.7 861
Code Word Conductor Size No. of wires Nominal Thickness of Covering Approx.Diameter of Cable Approx.Weight
kcmil (AWG) No. mm mm kg/km
AAC/XLPE
Paw Paw 556.5 37 2.03 25.9 951
Tangerine 636 37 2.41 28.1 1107
Breadfruit 636 61 2.41 28.2 1100
Banana 795 37 2.41 30.9 1357
Persimmon 795 61 2.41 30.9 1350
Grapefruit 1033.5 61 2.41 34.6 1719
Mango 1590 61 2.79 42.5 2616
AAAC/XLPE
Birch 30.58(6) 1 0.76 6.0 55
Maple 30.58(6) 7 0.76 6.6 59
Poplar 48.69(4) 1 0.76 7.1 83
Hornbeam 48.69(4) 7 0.76 7.9 90
Elm 77.47(2) 1 1.14 9.4 135
Linden 77.47(2) 7 1.14 10.3 145
Corktree 97.63(1) 7 1.14 11.3 180
Oilnut 123.3(1/0) 7 1.52 13.2 230
Waterash 155.4(2/0) 7 1.52 14.4 290
Shellbark 195.7(3/0) 7 1.52 15.8 360
Planetree 246.9(4/0) 7 1.52 17.4 440
ACSR/XLPE
Walnut 26.24(6) 6 / 1 0.76 6.6 70
Acorn 33.09(5) 6 / 1 0.76 7.2 87
Butternut 41.74(4) 6 / 1 0.76 7.9 108
Hickory 41.74(4) 7 / 1 0.76 8.1 122
Hazelnut 52.62(3) 6 / 1 1.14 9.4 144
Pignut 66.36(2) 6 / 1 1.14 10.3 177
Beech 66.36(2) 7 / 1 1.14 10.5 200
Chestnut 83.69(1) 6 / 1 1.14 11.3 218
Almond 105.6(1/0) 6 / 1 1.52 13.2 284
Pecan 133.1(2/0) 6 / 1 1.52 14.4 350
Cottonwood 133.1(2/0) 6 / 1 2.03 15.4 373
Filbert 167.8(3/0) 6 / 1 1.52 15.8 432
Chokeberry 167.8(3/0) 6 / 1 2.03 16.8 457
Code Word Conductor Size No. of Wires Nominal Thickness of Covering Approx.Diameter of Cable Approx.Weight
kcmil (AWG) No. mm mm kg/km
ACSR/XLPE
Buckeye 211.6(4/0) 6 / 1 1.52 17.4 535
Gumwood 211.6(4/0) 6 / 1 2.03 18.4 563
Hackberry 266.8 18 / 1 1.52 18.5 529
Redbud 266.8 18 / 1 2.03 19.5 558
Mockernut 336.4 18 / 1 1.52 20.4 656
Aspen 336.4 18 / 1 2.03 21.4 688
ACSR/AW /XLPE
Walnut 26.24(6) 6 / 1 0.76 6.6 68
Acorn 33.09(5) 6 / 1 0.76 7.2 84
Butternut 41.74(4) 6 / 1 0.76 7.9 103
Hickory 41.74(4) 7 / 1 0.76 8.1 115
Hazelnut 52.62(3) 6 / 1 1.14 9.4 138
Pignut 66.36(2) 6 / 1 1.14 10.3 170
Beech 66.36(2) 7 / 1 1.14 10.5 189
Chestnut 83.69(1) 6 / 1 1.14 11.3 209
Almond 105.6(1/0) 6 / 1 1.52 13.2 274
Pecan 133.1(2/0) 6 / 1 1.52 14.4 336
Cottonwood 133.1(2/0) 6 / 1 2.03 15.4 359
Filbert 167.8(3/0) 6 / 1 1.52 15.8 415
Chokeberry 167.8(3/0) 6 / 1 2.03 16.8 440
Buckeye 211.6(4/0) 6 / 1 1.52 17.4 514
Gumwood 211.6(4/0) 6 / 1 2.03 18.4 541
Hackberry 266.8 18 / 1 1.52 18.5 520
Redbud 266.8 18 / 1 2.03 19.5 549
Mockernut 336.4 18 / 1 1.52 20.4 645
Aspen 336.4 18 / 1 2.03 21.4 677

Covered Line Wire BS 6485

Code Name Nominal Calculatec Wires Approx. Overall Dia. Nominal Max.D.C. Resistance at20P Alum. Weight PVC Insulated Overall Diameter PVC Insulated Total Weight Packing Length
Area Area No. Dia. Load
mm’ mm2 mm mm kN Q/km kg/km mm kg/km m±5%
Midge 22 23.33 7 2.06 6.2 3.99 1.227 64 8.4 106 3000
Aphis 25 26.44 3 3.35 7.2 4.11 1.081 73 9.2 133 3000
Gnat 25 26.8 7 2.21 6.6 4.59 1.066 73 8.8 116 3000
Weevil 30 31.6 3 3.66 7.9 4.86 0.9082 86 10.1 158 3000
Mosouito 35 37 7 2.59 7.8 6.03 0.7762 101 10.0 158 3000
Ladybird 40 42.8 7 2.79 8.4 6.87 0.6689 117 10.6 177 3000
Ant 50 52.83 7 3.1 9.3 8.28 0.5419 145 11.5 212 3000
Fly 60 63.55 7 3.4 10.2 9.9 0.4505 174 12.4 249 2500
Blueeottle 70 73.55 7 3.66 11.0 11.34 0.3881 202 13.2 285 2500
Earwing 75 78.5 7 3.78 11.4 11.94 0.3644 215 13.6 302 2000
Grasshopper 80 84.1 7 3.91 11.7 12.78 0.3406 230 13.9 319 2000
Clegg 90 95.6 7 4.17 12.5 14.53 0.2994 262 14.7 359 2000
Wasp 100 108 7 4.39 13.21 16.0 0.2702 290 15.4 393 3000
Beetle 100 106.6 19 2.67 13.4 17.42 0.2704 293 15.6 387 3000
Bee 125 132 7 4.9 14.7 19.94 0.2169 361 16.5 482 2500
Cricket 150 157.9 7 5.36 16.1 23.85 0.1813 432 18.3 587 2000
Hornet 150 157.6 19 3.25 16.3 27.7 0.1825 434 18.5 638 3000
Caterpillar 175 186 19 3.53 17.7 28.63 0.1547 512 19.9 646 2500
Chafer 200 213.2 19 3.78 18.9 32.4 0.1349 587 21.1 733 2000
Spider 225 236.9 19 3.99 20.0 36.01 0.1211 652 22.2 809 2000
Cockroach 250 265.7 19 4.22 21.1 40.4 0.1083 731 23.3 900 3000
Butterfly 300 322.7 19 4.65 23.3 48.7 0.08916 888 25.5 1082 3000
Moth 350 373.2 19 5.0 25.0 56.37 0.07711 1027 27.2 1241 2500
Drone 350 373.3 37 3.58 25.1 57.45 0.07741 1029 27.3 1222 2500
Locust 400 428.5 19 5.36 26.8 64.73 0.0671 1179 29 1416 2000
Centipede 400 415.2 37 3.78 26.5 63.1 0.06944 1145 28.7 1363 2000
Maybug 450 486.9 37 4.09 28.6 74.01 0.05931 1342 30.8 1573 2000
Scorpion 500 529.5 37 4.27 29.9 79.98 0.05441 1460 32.1 1706 1500
Cicada 600 628.6 37 4.65 32.6 94.95 0.04586 1733 34.5 2010 1500
Tarantula 750 794.8 37 5.23 36.6 120.1 0.03627 2191 38.5 2519 1000

ICEA S-61-402 Standard Covered Line Wire AAC All Aluminum Conductor

Code Name Size No.of
Wires		 Insulation
Thickness		 Nominal Diameter Rated
Strength		 Nominal Weight Ampacity
Aluminum LDPE HDPE XLPE
Conductor Cable
– AWG or kcmil – mm mm mm kg kg/km kg/km kg/km kg/km amp
Plum 6 7 0.762 4.674 6.198 255 36.61 50.66 51.27 51.27 100
Apricot 4 7 0.762 5.715 7.239 400 58.19 75.57 76.33 76.33 135
Peach 2 7 1.143 7.417 9.703 612 92.56 126.09 127.55 127.55 180
Nectarine 1 7 1.143 8.433 11.481 789 116.67 167.31 169.52 169.52 210
Quince 1/0 7 1.524 9.347 12.395 903 147.48 203.70 206.14 206.14 240
Haw 1/0 19 1.524 9.474 12.522 980 147.48 204.49 206.96 206.96 240
Orange 2/0 7 1.524 11.786 14.834 1139 186.02 257.90 261.02 261.02 280
Lronwood 2/0 19 1.524 10.643 13.691 1211 186.02 250.41 253.21 253.21 280
Fig 3/0 7 1.524 13.259 16.307 1377 233.64 315.53 319.08 319.08 320
Lemon 3/0 19 1.524 11.938 14.986 1501 233.64 306.53 309.70 309.70 320
Olive 4/0 7 1.524 13.259 16.307 1728 296.14 378.04 381.58 381.58 370
Pomegranate 4/0 19 1.524 13.411 16.459 1823 296.14 379.09 382.69 382.69 370
Sassafras 250 19 1.524 14.580 17.628 2043 348.68 439.88 443.84 443.84 420
Mulberry 266.8 19 1.524 14.605 17.653 2182 372.19 463.59 467.55 467.55 460
Basswood 300 19 1.524 15.951 18.999 2404 419.66 520.91 525.30 525.30 478
Anona 336.4 19 1.524 16.916 19.964 2697 469.51 578.04 582.75 582.75 495
Chinquapin 350 19 1.524 17.221 20.269 2790 488.12 598.98 603.79 603.79 525
Molles 397.5 19 2.032 18.390 22.454 3123 555.08 707.29 713.88 713.88 550
Sumac 450 37 2.032 19.609 23.673 3719 628.00 791.79 798.89 798.89 600
Huckleberry 477 37 2.032 20.193 24.257 3810 665.21 834.63 841.98 841.98 610
Paw Paw 556.5 37 2.032 670
Breadfruit 636.0 61 2.413 720
Persimmon 795 61 2.413 825
Grapefruit 1033.5 61 2.413 970

ICEA S-61-402 Standard Covered Line Wire ACSR Aluminum Conductor

Code Name Size No.of
Wires		 Insulation
Thickness		 Nominal Diameter Rated
Strength		 Nominal Weight Ampacity
Aluminum Steel LDPE HDPE XLPE
Conductor Cable
AWG or kcmil mm mm mm kg kg/km kg/km kg/km kg/km kg/km A
Walnut 6 6/1 0.762 5.029 6.553 540 36.46 69.94 71.43 71.43 105
Butternut 4 6/1 0.762 6.350 7.874 844 58.04 107.15 170.15 108.64 135
Hickory 4 7/1 0.762 6.528 8.052 1070 58.04 120.54 122.03 123.52 135
Pignut 2 6/1 1.143 8.026 10.312 1293 92.27 175.60 177.09 178.58 180
Beech 2 7/1 1.143 8.357 10.643 1651 92.27 199.41 199.41 202.39 180
Chestnut 1 6/1 1.143 13.970 11.303 1610 116.37 217.27 218.76 220.25 210
Almond 1/0 6/1 1.524 10.109 13.157 1987 146.73 282.75 284.24 287.21 235
Pecan 2/0 6/1 1.524 11.354 14.402 2404 184.98 348.23 349.72 349.72 290
Filbert 3/0 6/1 1.524 12.751 15.799 3003 233.34 430.08 433.05 437.52 305
Buckeye 4/0 6/1 1.524 14.300 17.348 3787 294.21 531.27 535.74 540.20 345
Hackberry 266.8 18/1 1.524 15.469 18.517 3121 372.63 525.32 528.30 534.25 356

ICEA S-61-402 Standard Covered Line Wire 6201 Aluminum Alloy Conductor

Code Name Size No.of
Wires		 Insulation
Thickness		 Nominal Diameter Rated
Strength		 Nominal Weight Ampacity
Aluminum LDPE HDPE XLPE
Conductor Cable
– AWG or kcmil – mm mm mm kg kg/km kg/km kg/km kg/km amp
Maple 6 7 0.762 5.029 6.553 503 42.41 59.53 61.01 61.01 78
Hornbeam 4 7 0.762 6.350 7.874 798 67.56 89.29 90.78 92.12 145
Linden 2 7 1.143 8.026 10.312 1270 107.44 147.33 147.33 148.82 190
Oilnut 1/0 7 1.524 8.839 11.887 2023 170.99 238.11 247.03 247.03 250
Waterash 2/0 7 1.524 11.354 14.402 2445 215.63 291.68 302.01 302.01 290
Shellbark 3/0 7 1.524 12.751 15.799 3080 271.59 358.65 370.55 370.55 335
Planetree 4/0 7 1.524 14.300 17.348 3883 342.57 443.47 456.86 456.86 385

PDF Download

PDF Download

Why Choose Us

chanpin-why

Contact Us Immediately

Contact Us

  • 24-hour online service
  • Own factory processing
+86-17838385538

Product Category

hot-sale product

Service Concentric Cables

Concentric Cables With Copper Or Aluminum Conductors
600V Service Cable

Read More
Inquiry

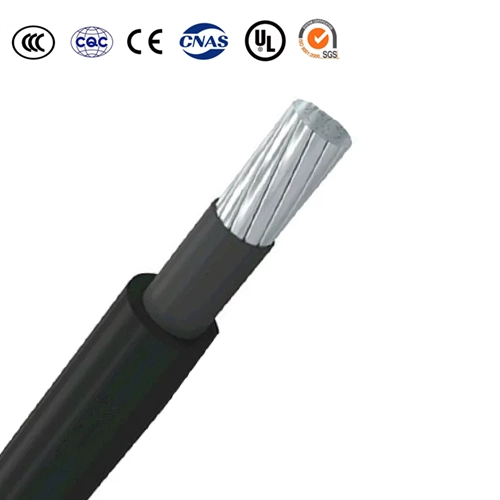

CoveredCable(ABNT NBR 11873)

Aerial Insulated Cables Protected Cables
Voltage Class 15 kV, 25 kV and 35 kV
Thermoplastic and Cross Linked Polyethylene Constructions

Read More
Inquiry

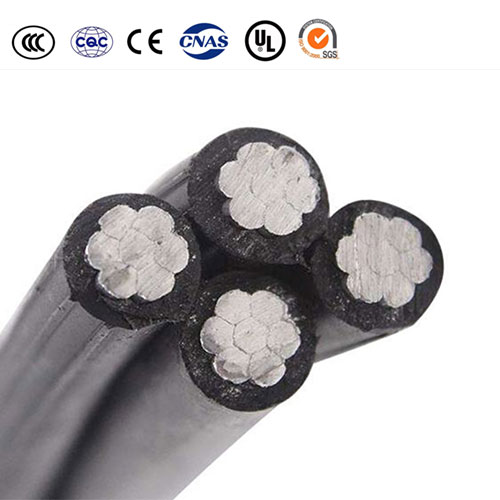

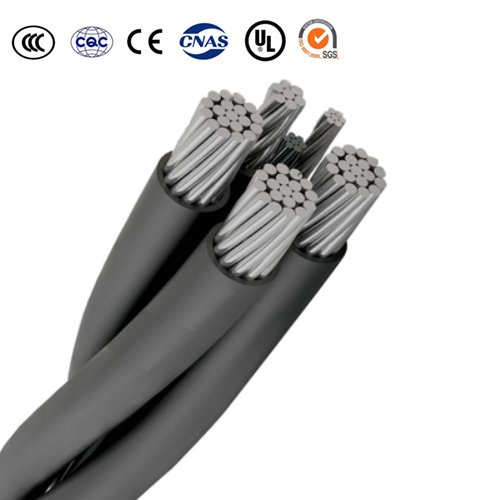

LV & MV Aerial Bundle Cable

ABC Cable (Aerial Bundled Cable) Supplier/Manufacturer
LV MV Aerial Bundle Cables (ABC)
Aluminum (or Aluminum Alloy)stranded conductor (compacted),
XLPE (or HDPE) insulated,
AAC messenger core (AAAC or ACSR or Galvanized steel wire messenger core, bare or covered)
Twisted (or parallel) power cable
And we can still produce the cables according to the request or customers.

Read More
Inquiry

Cable Torsadé Aluminium; Câble Torsadé Aérien; Câble électrique Aérien

Phase Conductor: Aluminium conductor, round stranded compressed (RM).
Neutral Conductor: Alloy aluminium conductor (AlMgSi), round stranded compressed (RM).
Insulation: XLPE. Load-bearing / neutral core – marked with standard and producers phase core – marked with digits 1, 2, 3.
Assembly: Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded.

Read More
Inquiry

Contact Us Immediately
