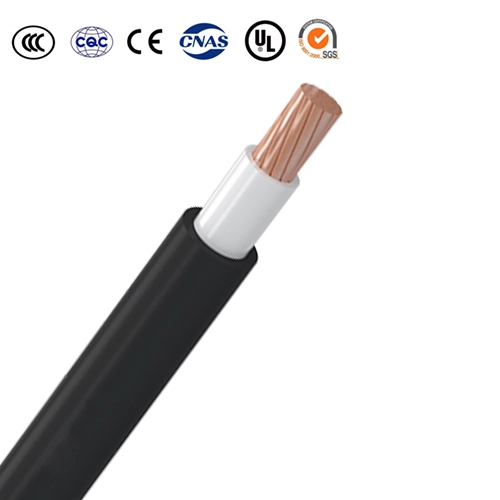

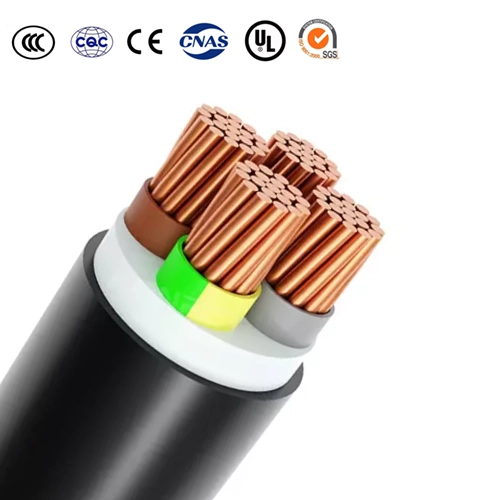

NYY-J NYY-O Cable
NYY-J NYY-O Cable
NYY-J NYY-O Cable 0.6/1 kV Power and control cables for fixed installation.
Can be used indoors, outdoors, underground, in concrete and in water
Application
The NYY cable range includes NYY-J and NYY-O cables. Power and control cables for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.
Advantages of the NYY-O and NYY-J
Flame retardant
Cables used to be responsible for spreading fire. The NYY-O and NYY-J are flame retardant. This means that these cables are designed in a way that it will not spread fire. Cables with these advantages are often used in buildings and at locations where people live, work and travel / move.
UV resistant*
Cables that are not UV resistant will be affected when they are exposed to direct sunlight. Only the cables with a black outer sheath have a UV-stabilised outer sheath making them suitable for direct exposure to sunlight. The outer sheath of the cable will not be harmed by the ultra-violet light which normally dries out a cable or causes cracks or bursts in the sheath. This will preserve the functionality of the cable.
Product Features
Voltage Uo/U: 0.6/1kV
Temperature rating: Fixed: -15ºC to +70ºC, Flexing: -5ºC to +50ºC
Specifications
Cable structure
Cores Solid or stranded of copper wires according to DIN VDE O295 cl.1 or cl.2
Core insulation
PVC
Color coding
Up to 5 cores, color coding according to DIN VDE 0293 For cables with 7 cores and up, black cores withwhite numbering Green/Yellow earthing core -J in the outer layer
Wrapping
Massive filling of thermoplastic
Outer sheath
PVC according to HD 603.1, black color, self extingushing andflame retardant according to DIN VDE 0482 and lEC 60332-1
NYY-J with earthcore
NYY-0 without earthing core
Parameter
PDF Download
PDF Download
Why Choose Us
Contact Us Immediately
Contact Us
- 24-hour online service
- Own factory processing
Product Category
hot-sale product
PVC Insulated Armored LV Power Cable Single core( aluminum wire armoured)
PVC Insulated Armored LV Power Cable Two cores(Galvanized steel wire armoured)
PVC Insulated Armored LV Power Cable Three cores(Galvanized steel wire armoured)
PVC Insulated Armored LV Power Cable Three cores+1(Galvanized steel wire armoured)
PVC Insulated Armored LV Power Cable Four cores(Galvanized steel wire armoured)
LV PVC Insulated Unarmoured Power Cables Single core(unarmoured)
LV PVC Insulated Unarmoured Power Cables Two cores(unarmoured)
LV PVC Insulated Unarmoured Power Cables Three cores(unarmoured)
LV PVC Insulated Unarmoured Power Cables Three cores+1(unarmoured)
LV PVC Insulated Unarmoured Power Cables Four cores(unarmoured)
LV PVC Insulated Unarmoured Power Cables Multi-cores(unarmoured)

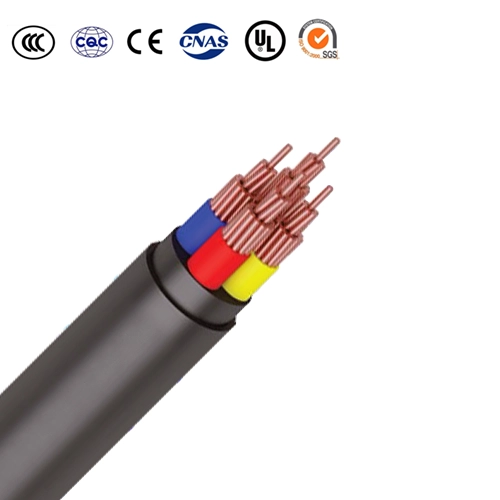

PVC insulated Unarmoured power cable
