ACSR/AW–Aluminum Conductor Aluminum Clad Steel Reinforced

ACSR/AS or ACSR/AW Conductor

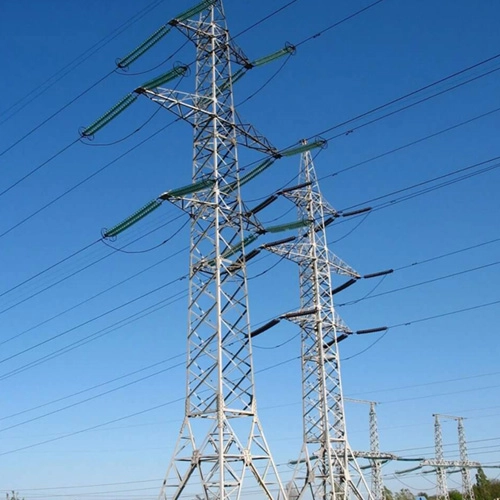

Bare Overhead Transmission Cable
Primary and Secondary Distribution Cable

Application

ACSR/AW–Aluminum Conductor Aluminum Clad Steel Reinforced – Used as bare overhead transmission and as primary and secondary distribution cable. ACSR/AW offers strength characteristics similar to ACSR, along with slightly greater ampacity and resistance to corrosion due to aluminum-cladding of the steel core wires.

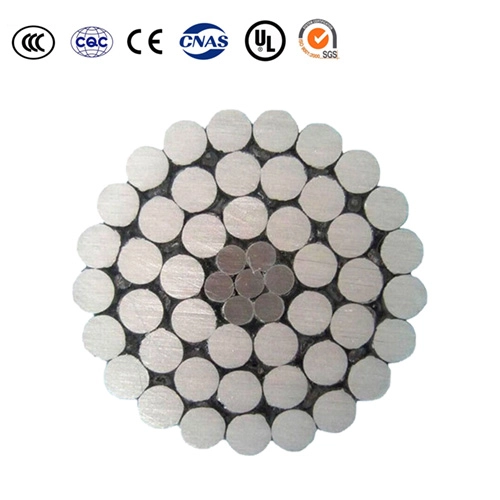

Aluminum wires, concentrically stranded about an aluminum-clad steel core.

Specifications

• IEC 61089 Round wire concentric lay overhead electrical stranded conductors
• ASTM B 549 Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced for Use in Overhead Electrical Conductors
• GB/T 1179 Round wire concentric lay overhead electrical stranded conductors

Parameter

ACSR/AW–Aluminum Conductor Aluminum Clad Steel Reinforced ASTM B 549

ACSR/AW Code Name	Conductor Size – Aluminum		Aluminum		Aluminum-Clad Steel		Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	Conductor Size – Aluminum		Number of Wires	Nominal Diameter	No. of Wires	Nominal Diameter	Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	MCM	mm²		mm		mm	kN	kg/km	mm	Ω/km
Thrasher	2312	1171	76	4.43	19	2.07	246	3679	45.79	0.0244
Kiwi	2167	1098	72	4.41	7	2.94	218	3366	44.10	0.0261
Bluebird	2156	1092	84	4.07	19	2.44	262	3627	44.76	0.0259
Chukar	1780	902	84	3.70	19	2.22	220	2996	40.70	0.0314
Falcon	1590	806	54	4.36	19	2.62	236	2917	39.26	0.0346
Lapwing	1590	806	45	4.78	7	3.18	186	2598	38.22	0.0351
Parrot	1510.5	765	54	4.25	19	2.55	224	2768	38.25	0.0364
Nuthatch	1510.5	765	45	4.65	7	3.10	177	2467	37.20	0.0370
Plover	1431	725	54	4.14	19	2.48	212	2625	37.24	0.0384
Bobolink	1431	725	45	4.53	7	3.02	167	2336	36.24	0.0390
Martin	1351.5	685	54	4.02	19	2.41	201	2478	36.17	0.0407
Dipper	1351.5	685	45	4.40	7	2.93	158	2207	35.19	0.0414
Pheasant	1272	645	54	3.90	19	2.34	189	2333	35.10	0.0433
Bittern	1272	645	45	4.27	7	2.85	149	2078	34.17	0.0439
Skylark	1272	645	36	4.78	1	4.78	114	1893	33.46	0.0442
Grackle	1192.5	604	54	3.77	19	2.27	179	2188	33.97	0.0463
Bunting	1192.5	604	45	4.14	7	2.76	139	1948	33.12	0.0467
Finch	1113	564	54	3.65	19	2.19	167	2043	32.85	0.0494
Bluejay	1113	564	45	4.00	7	2.66	130	1819	31.98	0.0501
Curlew	1033.5	524	54	3.51	7	3.51	158	1896	31.59	0.0534
Ortolan	1033.5	524	45	3.85	7	2.57	121	1688	30.81	0.0540
Tanager	1033.5	524	36	4.30	1	4.30	94	1537	30.10	0.0546
Cardinal	954	483	54	3.38	7	3.38	146	1752	30.42	0.0573
Rail	954	483	45	3.70	7	2.47	113	1558	29.61	0.0585
Catbird	954	483	36	4.14	1	4.14	87	1420	28.98	0.0589
Canary	900	456	54	3.28	7	3.28	138	1653	29.52	0.0608
Ruddy	900	456	45	3.59	7	2.40	107	1470	28.74	0.0621
Mallary	795	403	30	4.14	19	2.48	165	1726	28.96	0.0668
Condor	795	403	54	3.08	7	3.08	124	1458	27.72	0.0690
Tern	795	403	45	3.38	7	2.25	96	1298	27.03	0.0701
Drake	795	403	26	4.44	7	3.45	136	1549	28.11	0.0682
Cuckoo	795	403	24	4.62	7	3.08	122	1460	27.72	0.0690

Code Name	Conductor Size – Aluminum		Aluminum		Aluminum-Clad Steel		Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	Conductor Size – Aluminum		Number of Wires	Nominal Diameter	No. of Wires	Nominal Diameter	Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	MCM	mm²		mm		mm	kN	kg/km	mm	Ω/km
Coot	795	403	36	3.77	1	3.77	74	1183	26.39	0.0711
Redwing	715.5	363	30	3.92	19	2.35	149	1552	27.43	0.0744
Starling	715.5	363	26	4.21	7	3.28	122	1393	26.68	0.0758
Stilt	715.5	363	24	4.39	7	2.92	110	1314	26.32	0.0764
Gannet	666.6	338	26	4.07	7	3.16	116	1298	25.76	0.0812
Flamingo	666.6	338	24	4.23	7	2.82	103	1225	25.38	0.0823
Egret	636	322	30	3.70	19	2.22	133	1381	25.90	0.0836
Sooter	636	322	30	3.70	7	3.70	130	1391	25.90	0.0834
Grosbeak	636	322	26	3.97	7	3.09	110	1238	25.15	0.0853
Rook	636	322	24	4.14	7	2.76	98	1168	24.84	0.0859
Swift	636	322	36	3.38	1	3.38	61	946	23.66	0.0884
Kingbird	636	322	18	4.78	1	4.78	67	1006	23.90	0.0876
Teal	605	307	30	3.61	19	2.16	127	1314	25.24	0.0878
Wood Duck	605	307	30	3.61	7	3.61	126	1323	25.27	0.0876
Squab	605	307	26	3.87	7	3.01	105	1177	24.51	0.0898
Peacock	605	307	24	4.03	7	2.69	93	1112	24.19	0.0906
Eagle	556.5	282	30	3.46	7	3.46	119	1217	24.22	0.0954
Dove	556.5	282	26	3.72	7	2.89	97	1083	23.55	0.0972
Parakeet	556.5	282	24	3.87	7	2.58	86	1022	23.22	0.0983
Ospray	556.5	282	18	4.47	1	4.47	59	880	22.35	0.1002
Hen	477	242	30	3.20	7	3.20	104	1043	22.40	0.1115
Hawk	477	242	26	3.44	7	2.68	84	929	21.80	0.1136
Flicker	477	242	24	3.58	7	2.39	74	877	21.49	0.1148
Pelican	477	242	18	4.14	1	4.14	51	755	20.70	0.1168
Lark	397.5	201	30	2.92	7	2.92	87	869	20.44	0.1339
Ibis	397.5	201	26	3.14	7	2.44	70	774	19.88	0.1364
Brant	397.5	201	24	3.27	7	2.18	63	731	19.62	0.1377
Chickadee	397.5	201	18	3.77	1	3.77	44	628	18.85	0.1408
Oriole	336.4	170	30	2.69	7	2.69	74	737	18.83	0.1574
Linnet	336.4	170	26	2.89	7	2.25	60	655	18.31	0.1609
Merlin	336.4	170	18	3.47	1	3.47	38	531	17.35	0.1662
Ostrich	300	152	26	2.73	7	2.12	54	583	17.28	0.1804

Code Name	Conductor Size – Aluminum		Aluminum		Aluminum-Clad Steel		Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	Conductor Size – Aluminum		Number of Wires	Nominal Diameter	No. of Wires	Nominal Diameter	Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	MCM	mm²		mm		mm	kN	kg/km	mm	Ω/km
Partridge	266.8	135	26	2.57	7	2.00	48	519	16.28	0.2035
Waxwing	266.8	135	18	3.09	1	3.09	30	421	15.45	0.2096
Penguin	211.6	107	6	4.77	1	4.77	34	412	14.31	0.2533
Cochin	211.3	107	12	3.37	7	3.37	88	710	16.85	0.2258
Brahma	203.2	103	16	2.86	19	2.48	121	894	18.12	0.2163
Dorking	190.8	96.7	12	3.20	7	3.20	81	641	16.00	0.2505
Dotterel	176.9	89.6	12	3.08	7	3.08	75	594	15.40	0.2704
Pigeon	167.8	85.0	6	4.25	1	4.25	28	326	12.75	0.3191
Guinea	159	80.6	12	2.92	7	2.92	68	534	14.60	0.3008
3/0 (5/2)	152.5	77.3	5	4.44	2	4.44	43	418	13.32	0.3261
3/0 (4/3)	141.3	71.6	4	4.78	3	4.78	63	555	14.34	0.3187
Leghom	134.6	68.2	12	2.69	7	2.69	58	452	13.45	0.3545
Quail	133.1	67.4	6	3.78	1	3.78	23	259	11.34	0.4035
2/0 (5/2)	121	61.3	5	3.95	2	3.95	36	332	11.85	0.4121
2/0 (4/3)	112.1	56.8	4	4.25	3	4.25	53	441	12.75	0.4032
Minorca	110.8	56.1	12	2.44	7	2.44	48	372	12.20	0.4308
Raven	105.6	53.5	6	3.37	1	3.37	19	205	10.11	0.5074
Petrel	101.8	51.6	12	2.34	7	2.34	44	342	11.70	0.4684
2/0 (3/4)	99.83	50.6	3	4.63	4	4.63	73	588	13.89	0.3928
1/0 (5/2)	95.91	48.6	5	3.52	2	3.52	29	263	10.56	0.5189
1/0 (4/3)	88.80	45.0	4	3.79	3	3.79	43	348	11.37	0.5070
Robin	83.69	42.4	6	3.00	1	3.00	15	162	9.00	0.6403
Grouse	80.00	40.5	8	2.54	1	4.24	22	205	9.32	0.6359
1/0 (3/4)	79.13	40.1	3	4.13	4	4.13	61	466	12.39	0.4936
1 (5/2)	76.08	38.6	5	3.13	2	3.13	24	208	9.39	0.6563
1 (4/3)	70.48	35.7	4	3.37	3	3.37	36	277	10.11	0.6413
Sparate	66.36	33.6	7	2.47	1	3.30	16	149	8.24	0.7874
Sparrow	66.36	33.6	6	2.67	1	2.67	12	129	8.01	0.8084
1/0 (2/5)	64.92	32.9	2	4.58	5	4.58	87	640	13.74	0.4730
1 (3/4)	62.77	31.8	3	3.67	4	3.67	50	369	11.01	0.6251
2 (5/2)	60.34	30.6	5	2.79	2	2.79	19	165	8.37	0.8260
2 (4/3)	55.89	28.3	4	3.00	3	3.00	29	219	9.00	0.8092

Code Name	Conductor Size – Aluminum		Aluminum		Aluminum-Clad Steel		Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	Conductor Size – Aluminum		Number of Wires	Nominal Diameter	No. of Wires	Nominal Diameter	Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	MCM	mm²		mm		mm	kN	kg/km	mm	Ω/km
Swallow	52.62	26.7	6	2.38	1	2.38	10	103	7.14	1.0174
1 (2/5)	51.50	26.1	2	4.08	5	4.08	73	507	12.24	0.5961
2 (3/4)	49.78	25.2	3	3.27	4	3.27	43	293	9.81	0.7874
3 (5/2)	47.85	24.3	5	2.48	2	2.48	16	131	7.44	1.0454
3 (4/3)	44.32	22.5	4	2.68	3	2.68	23	174	8.04	1.0140
Swanate	41.74	21.2	7	1.96	1	2.61	10	93	6.53	1.2511
Swan	41.74	21.2	6	2.12	1	2.12	8	81	6.36	1.2823
2 (2/5)	40.84	20.7	2	3.63	5	3.63	60	402	10.89	0.7530
3 (3/4)	39.47	20.0	3	2.91	4	2.91	34	232	8.73	0.9943
4 (5/2)	37.95	19.2	5	2.21	2	2.21	12	104	6.63	1.3164
4 (4/3)	35.15	17.8	4	2.38	3	2.38	19	138	7.14	1.2857
3 (2/5)	32.39	16.4	2	3.23	5	3.23	50	320	9.69	0.9510
4 (3/4)	31.30	15.9	3	2.60	4	2.60	27	185	7.80	1.2455
4 (2/5)	25.69	13.0	2	2.88	5	2.88	40	253	8.64	1.1962

ACSR/AW–Aluminum Conductor Aluminum Clad Steel Reinforced BS-215

Nominal Aluminum Area	Name Code	Stranding and wire diameter		Sectional Area of Aluminum	Total Sectional Area	Appro. Overall Diameter	Appro. Mass	Calculated DC. resistance @ 20℃	Calculated Breaking load
Nominal Aluminum Area	Name Code	Aluminum	AS	Sectional Area of Aluminum	Total Sectional Area	Appro. Overall Diameter	Appro. Mass	Calculated DC. resistance @ 20℃	Calculated Breaking load
mm2		mm	mm	mm2	mm2	mm	kg/km	Ω/km	kN
25	GOPHER	6/2.36	1/2.36	26.25	30.62	7.08	100.8	1.0349	9.89
30	WEASEL	6/2.59	1/2.59	31.61	36.88	7.77	121.5	0.8592	11.79
40	FERRET	6/3.00	1/3.00	42.41	49.48	9.00	163.0	0.6405	15.66
50	RABBIT	6/3.35	1/3.35	52.88	61.70	10.05	203.2	0.5136	19.06
70	HORSE	12/2.79	7/2.79	73.37	116.2	13.95	243.1	0.3286	63.95
100	DOG	6/4.72	7/1.57	105.0	118.5	14.15	300.9	0.2619	33.01
150	WOLF	30/2.59	7/2.59	158.1	194.9	18.13	471.6	0.1694	71.64
150	DINGO	18/3.35	1/3.35	158.7	167.5	16.75	495.0	0.1781	36.46
175	LYNX	30/2.79	7/2.79	183.4	226.2	19.53	547.3	0.1460	82.49
175	CARACAL	18/3.61	1/3.61	184.3	194.5	18.05	574.9	0.1534	41.52
200	PANTHER	30/3.00	7/3.00	212.1	261.5	21.00	632.8	0.1263	95.34
200	JAGUAR	18/3.86	1/3.86	210.6	222.3	19.30	657.2	0.1342	46.50
400	ZEBRA	54/3.18	7/3.18	428.9	484.5	28.62	1238	0.06456	137.76

ACSR/AW–Aluminum Conductor Aluminum Clad Steel Reinforced IEC 61089

Code Number	Steel Ratio	Areas			Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	DC Resistance @20℃
		A1	SA1A	Total	A1	SA1A	Al	SA1A	Core	Cond.	Linear Mass	Rated Strength	DC Resistance @20℃
		mm2	mm2	mm2	A1	SA1A	mm	mm	mm	mm	kg/km	kN	ohm/km
16	16.7	15.0	2.56	17.6	6	1	1.81	1.81	1.81	5.43	59.0	5.91	1.7923
25	16.7	24.0	4.00	28.0	6	1	2.26	2.26	2.26	6.78	92.1	9.00	1.1471
40	16.7	38.0	6.40	44.4	6	1	2.85	2.85	2.85	8.55	147.4	14.21	0.7169
63	16.7	60.0	10.1	70.1	6	1	3.58	3.58	3.58	10.7	232.2	21.17	0.4552
100	16.7	96.0	16.0	112	6	1	4.51	4.51	4.51	13.5	368.6	31.84	0.2868
125	5.6	123	6.85	130	18	1	2.95	2.95	2.95	14.8	384.3	29.18	0.2304
125	16.3	120	19.6	140	26	7	2.43	1.89	5.66	15.4	460.8	44.49	0.2308
160	5.6	158	8.77	167	18	1	3.34	3.34	3.34	16.7	492.0	36.38	0.1800
160	16.3	154	25.0	179	26	7	2.74	2.13	6.4	17.4	589.8	56.18	0.1803
200	5.6	197	11.0	208	18	1	3.74	3.74	3.74	18.7	614.9	43.62	0.1440
200	16.3	192	31.3	223	26	7	3.07	2.39	7.16	19.4	737.2	69.27	0.1443
250	9.8	244	24.0	268	22	7	3.76	2.09	6.26	21.3	830.9	67.80	0.1153
250	16.3	240	39.1	279	26	7	3.43	2.67	8.00	21.7	921.5	86.58	0.1154
315	6.9	310	21.4	331	45	7	2.96	1.97	5.92	23.7	996.4	78.33	0.09170
315	16.3	303	49.3	352	26	7	3.85	2.99	8.98	24.4	1161.1	107.6	0.09160
400	6.9	393	27.2	420	45	7	3.34	2.22	6.67	26.7	1265.2	97.50	0.07220
400	13	387	50.2	437	54	7	3.02	3.02	9.07	27.2	1402.9	124.2	0.07230
450	6.9	442	30.6	473	45	7	3.54	2.36	7.08	28.3	1423.4	107.5	0.06420
450	13	436	56.5	492	54	7	3.21	3.21	9.62	28.9	1578.2	139.7	0.06420
500	6.9	492	34.0	526	45	7	3.73	2.49	7.46	29.8	1581.6	119.4	0.05780
500	13	484	62.8	547	54	7	3.38	3.38	10.14	30.4	1753.6	154.0	0.05780
560	6.9	550	38.1	588	45	7	3.95	2.63	7.89	31.6	1771.3	133.8	0.05160
560	12.7	543	68.8	612	54	19	3.58	2.15	10.73	32.2	1956.3	169.4	0.05160
630	6.9	619	42.8	662	45	7	4.19	2.79	8.37	33.5	1992.8	150.5	0.04580
630	12.7	611	77.4	688	54	19	3.79	2.28	11.38	34.1	2200.9	190.5	0.04590
710	6.9	698	48.3	746	45	7	4.44	2.96	8.89	35.5	2245.8	169.6	0.04070
710	12.7	688	87.2	775	54	19	4.03	2.42	12.08	36.3	2480.3	214.7	0.04070
800	4.3	791	34.2	825	72	7	3.74	2.49	7.48	37.4	2412.8	167.7	0.03610
800	8.3	784	65.3	849	84	7	3.45	3.45	10.34	37.9	2598.9	206.4	0.03620
800	12.7	775	98.2	873	54	19	4.28	2.57	12.83	38.5	2794.8	241.9	0.03610
900	4.3	890	38.5	929	72	7	3.97	2.65	7.94	39.7	2714.4	188.6	0.03210
900	8.3	882	73.5	956	84	7	3.66	3.66	10.97	40.3	2923.8	221.9	0.03210
1000	4.3	989	42.7	1032	72	7	4.18	2.79	8.37	41.8	3016.0	209.6	0.02890
1120	4.2	1108	46.8	1155	72	19	4.43	1.77	8.85	44.3	3372.6	233.5	0.02580
1120	8.1	1098	89.4	1187	84	19	4.08	2.45	12.24	44.9	3628.3	282.9	0.02580
1250	4.2	1237	52.2	1289	72	19	4.68	1.87	9.35	46.8	3764.1	260.6	0.02310
1250	8.1	1225	99.8	1325	84	19	4.31	2.59	12.93	47.4	4049.5	315.7	0.02310

PDF Download

Why Choose Us

Contact Us Immediately

Contact Us

Product Category

hot-sale product

MOQ: 5KM Factory from China
25mm 50mm 95mm 100mm ACSR Conductor
Overhead Line Cable
Aluminium Conductors with a steel support core for use in overhead transmission and distribution lines.

Dead Soft Annealed (DSA) Copper Clad steel (CCS) conductors are a concentric lay-stranded construction. The CCS strands are a 40% conductivity grade of material using a low carbon steel core rendering greater flexibility to enable easier handling during installation.

Galvanized Clad steel wire earth wire/stay wire/guy wire/spacer cable (GSW)

Overhead ground wire or static wire on transmission lines

Pole or structure guy wires

Messenger cable for field-erected aerial cable

Galvanized steel wire

ACS Wire Manufacturers
Aluminium Clad Wire (ACS) Manufacturer

About Us

Company Profile

Certification

Factory Tour
