AAC-All Aluminum Conductor

AAC-All Aluminum Conductor

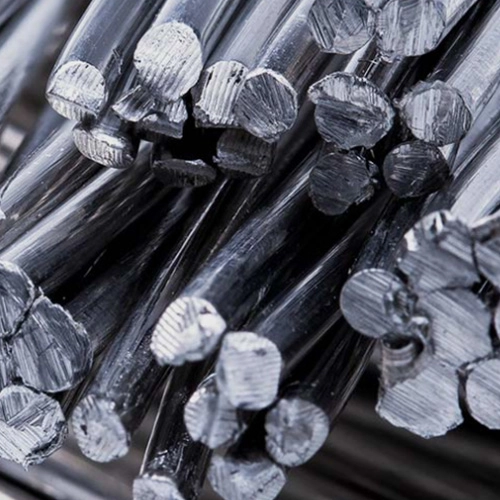

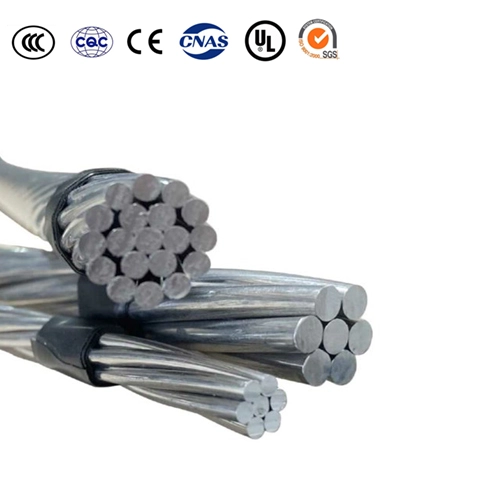

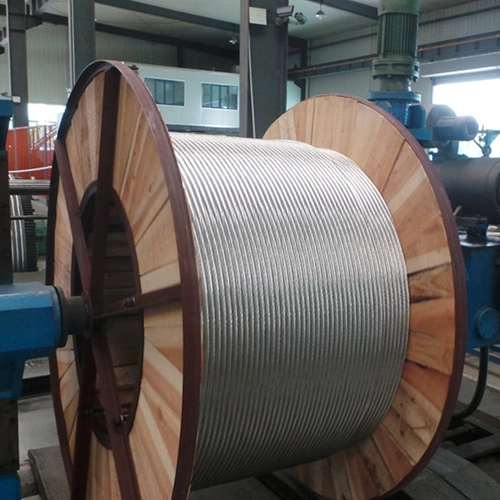

AAC Overhead Conductor (Bare Wire)

HDA Hard Drawn Aluminum Stranded Conductor

Bare Aluminum Conductor

Overhead Lines and Transmission Cables

China Manufacturers and Suppliers

Application

AAC wire is suitable for spans on wooden poles, transmission towers and other structures that do not require high tensile strength. Applications range from extra-high voltage (EHV) transmission lines to secondary service spans for distribution or use voltages in private locations.

AAC conductor cables are mainly used in urban areas where the spacing is short and the support points are close together. All aluminum conductors consist of one or more aluminum wires, depending on the end use. AAC is also widely used in coastal areas because it is highly resistant to corrosion. Concentric stranded aluminum conductor (AAC) is made of hard drawn aluminum wire (HDA conductor).

Specifications

● IEC 61089 Round wire concentric lay overhead electrical stranded conductors
● ASTM B 231 Concentric-Lay-Stranded Aluminum 1350 Conductors
● BS EN 50182 Conductors for overhead lines — Round wire concentric lay stranded conductors
● BS 215-1 Aluminium Conductors and Aluminium Conductors, Steel-reinforced — For Overhead Power Transmission — Part 1: Aluminium Stranded Conductors
● AS 1531 Conductors – Bare overhead – Aluminium and aluminium alloy
● GB/T 1179 Round wire concentric lay overhead electrical stranded conductors

Parameter

AAC Conductor ASTM B-230 ASTM B-231 CSA C49 for Philippines, Myanmar, Peru, Chile, Paraguay, Ecuador, Colombia, Mozambique

Code Name	Area		Number of Wires	Diameter of Wire	Approx. Overall Diameter	Unit Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃
	Nominal	Actual	Number of Wires	Diameter of Wire	Approx. Overall Diameter	Unit Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃
	AWG or MCM	mm²	No.	mm	mm	kg/km	kN	ohm/km
PEACHBELL	6	13.3	7	1.56	4.68	36.6	2.53	2.1606
ROSE	4	21.1	7	1.96	5.88	58.2	3.91	1.3619
IRIS	2	33.6	7	2.47	7.41	92.6	5.99	0.8550
PANSY	1	42.4	7	2.78	8.34	116.6	7.30	0.6779
POPPY	1/0	53.5	7	3.12	9.36	147.2	8.84	0.5373
ASTER	2/0	67.4	7	3.50	10.50	185.7	11.1	0.4262
PHLOX	3/0	85.0	7	3.93	11.79	233.9	13.5	0.3379
OXLIP	4/0	107.2	7	4.42	13.26	295.2	17.0	0.2680
VALERIAN	250	126.7	19	2.91	14.55	348.6	20.7	0.2268
SNEEZEWORT	250	126.7	7	4.80	14.40	348.8	20.1	0.2268
LAUREL	266.8	135.2	19	3.01	15.05	372.2	22.1	0.2126
DAISY	266.8	135.2	7	4.96	14.88	372.3	21.4	0.2126
PEONY	300	152.0	19	3.19	15.95	418.3	24.3	0.1890
TULIP	336.4	170.5	19	3.38	16.90	469.5	27.3	0.1686
DAFFODIL	350	177.3	19	3.45	17.25	487.9	28.4	0.1621
CANNA	397.5	201.4	19	3.67	18.35	554.9	31.6	0.1427
GOLDENTUFT	450	228.0	19	3.91	19.55	627.6	35.0	0.1260
SYRINGA	477	241.7	37	2.88	20.16	664.8	38.6	0.1189
COSMOS	477	241.7	19	4.02	20.10	664.8	37.0	0.1189
HYACINTH	500	253.3	37	2.95	20.65	696.8	40.5	0.1134
ZINNIA	500	253.3	19	4.12	20.60	697.1	38.9	0.1134
MISTLETOE	556.5	282.0	37	3.12	21.84	775.7	44.3	0.1019
DAHLIA	556.5	282.0	19	4.35	21.75	775.8	43.3	0.1019
MEADOWSWEET	600	304.0	37	3.23	22.61	836.3	47.5	0.0945
ORCHID	636	322.3	37	3.33	23.31	886.9	50.4	0.0892
HEUCHERA	650	329.4	37	3.37	23.59	907.4	51.7	0.0872
FLAG	700	354.7	61	2.72	24.48	975.8	57.1	0.0810
VERBENA	700	354.7	37	3.49	24.43	975.7	55.4	0.0810
NASTURTIUM	715.5	362.6	61	2.75	24.75	998.5	58.4	0.0793
VIOLET	715.5	362.6	37	3.53	24.71	998.5	56.7	0.0793

Code Name	Area		Number of Wires	Diameter of Wire	Approx. Overall Diameter	Unit Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃
	Nominal	Actual	Number of Wires	Diameter of Wire	Approx. Overall Diameter	Unit Weight	Nominal Breaking Load	Nominal DC Resistance at 20℃
	AWG or MCM	mm²	No.	mm	mm	kg/km	kN	ohm/km
CATTAIL	750	380.0	61	2.82	25.38	1046	60.3	0.0756
PETUNIA	750	380.0	37	3.62	25.34	1046	58.6	0.0756
LILAC	795	402.8	61	2.90	26.10	1110	63.8	0.0713
ARBUTUS	795	402.8	37	3.72	26.04	1109	61.8	0.0713
SNAPDRAGON	900	456.0	61	3.09	27.81	1256	70.8	0.0630
COCKSCOMB	900	456.0	37	3.96	27.72	1256	68.4	0.0630
GOLDENROD	954	483.4	61	3.18	28.62	1331	75.0	0.0594
MAGNOLIA	954	483.4	37	4.08	28.56	1331	72.6	0.0594
CAMELLIA	1000	506.7	61	3.25	29.25	1394	78.3	0.0567
HAWKWEED	1000	506.7	37	4.18	29.26	1395	76.2	0.0567
LARKSPUR	1033.5	523.7	61	3.31	29.79	1442	81.3	0.0549
BLUEBELL	1033.5	523.7	37	4.25	29.75	1441	78.8	0.0549
MARIGOLD	1113	564.0	61	3.43	30.87	1553	87.3	0.0509
HAWTHORN	1192.5	604.2	61	3.55	31.95	1662	93.5	0.0476
NARCISSUS	1272	644.5	61	3.67	33.03	1774	98.1	0.0446
COLUMBINE	1351	684.6	61	3.78	34.02	1884	104	0.0420
CARNATION	1431	725.1	61	3.89	35.01	1997	108	0.0396
GLADIOLUS	1510.5	765.4	61	4.00	36.00	2108	114	0.0375
COREOPSIS	1590	805.7	61	4.10	36.90	2216	120	0.0357
JESSAMINE	1750	886.7	61	4.30	38.70	2442	132	0.0324
COWSLIP	2000	1013	91	3.77	41.47	2787	153	0.0284
SAGEBRUSH	2250	1140	91	3.99	43.89	3166	167	0.0255
LUPINE	2500	1267	91	4.21	46.31	3519	186	0.0229
BITTERROOT	2750	1393	91	4.42	48.62	3872	205	0.0208
TRILLIUM	3000	1520	127	3.90	50.70	4226	223	0.0191
BLUEBONNET	3500	1773	127	4.22	54.86	4977	261	0.0165

AAC Conductor IEC 61089 for Nigeria

Code	Area	No.of	Diameter		Linear	Rated	D.C.
Number	Area	Wires	Wire	Cond.	Mass	Strength	Resistance
	mm2		mm	mm	kg/km	kN	Ω/km
10	10	7	1.35	4.05	27.4	1.95	2.8633
16	16	7	1.71	5.12	43.8	3.04	1.7896
25	25	7	2.13	6.4	68.4	4.5	1.1453
40	40	7	2.7	8.09	109.4	6.8	0.7158
63	63	7	3.39	10.2	172.3	10.39	0.4545
100	100	19	2.59	12.9	274.8	17	0.2877
125	125	19	2.89	14.5	343.6	21.25	0.2302
160	160	19	3.27	16.4	439.8	26.4	0.1798
200	200	19	3.66	18.3	549.7	32	0.1439
250	250	19	4.09	20.5	687.1	40	0.1151
315	315	37	3.29	23	867.9	51.97	0.0916
400	400	37	3.71	26	1102	64	0.0721
450	450	37	3.94	27.5	1239.8	72	0.0641
500	500	37	4.15	29	1377.6	80	0.0577
560	560	37	4.39	30.7	1542.9	89.6	0.0515
630	630	61	3.63	32.6	1738.3	100.8	0.0458
710	710	61	3.85	34.6	1959.1	113.6	0.0407
800	800	61	4.09	36.8	2207.4	128	0.0361
900	900	61	4.33	39	2483.3	144	0.0321
1000	1000	61	4.57	41.1	2759.2	160	0.0289
1120	1120	91	3.96	43.5	3093.5	179.2	0.0258
1250	1250	91	4.18	46	3452.6	200	0.0231
1400	1400	91	4.43	48.7	3866.9	224	0.0207
1500	1500	91	4.58	50.4	4143.1	240	0.0193

AAC Conductor DIN 48201-5 for Iraq, Ghana

Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
mm^2	mm^2	No.×mm	mm	kg/km	KN	Ω/Km	A
16	15.89	7/1.70	5.1	43	2.84	1.8022	83
25	24.25	7/2.10	6.3	66	4.17	1.181	108
35	34.36	7/2.50	7.5	94	5.78	0.8333	134
50	49.48	7/3.00	9	135	7.94	0.5787	168
50	48.35	19/1.80	9	133	8.45	0.5951	166
70	65.81	19/2.10	10.5	181	11.32	0.4372	200
95	93.27	19/2.50	12.5	256	15.68	0.3085	248
120	116.99	19/2.80	14	322	18.78	0.2459	285
150	147.11	37/2.25	15.8	406	25.3	0.196	328
185	181.62	37/2.50	17.5	500	30.54	0.1588	373
240	242.54	61/2.25	20.3	670	39.51	0.1191	445
300	299.43	61/2.50	22.5	827	47.7	0.0965	506
400	400.14	61/2.89	26	1104	60.86	0.0722	602
500	499.83	61/3.23	29.1	1379	74.67	0.0578	688
625	626.2	91/2.96	32.6	1732	95.25	0.0462	786
800	802.09	91/3.35	36.9	2218	118.39	0.036	907
1000	999.71	91/3.74	41.1	2767	145.76	0.0289	1026

AAC Conductor BS EN 50182 for Qatar, Uganda, Zambia, Zimbabwe, Ghana, Kenya, Malawi, Botswana, South Africa

Code	Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
	mm^2	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
Midge	22	23.33	7/2.06	6.18	64	3.99	1.227	106
Gnat	25	26.8	7/2.21	6.6	73.8	4.83	1.0643	122
Mosquito	35	37	7/2.59	7.8	102.1	6.27	0.7749	141
Ladybird	40	42.8	7/2.79	8.4	117.9	7.28	0.6678	157
Ant	50	52.83	7/3.10	9.3	145	8.28	0.5419	175
Fly	60	63.55	7/3.40	10.2	174	9.9	0.4505	196
Bluebottle	70	73.7	7/3.66	11	202	11.34	0.3881	215
Earwing	75	78.5	7/3.78	11.4	215	11.94	0.3644	232
Grasshopper	80	84.1	7/3.91	11.7	230	12.78	0.3406	249
Clegg	90	95.6	7/4.17	12.5	262	14.53	0.2944	253
Wasp	100	106	7/4.39	13.17	290	16	0.2702	268
Beetle	100	106	19/2.67	13.4	293	17.42	0.2704	260
Bee	125	132	7/4.90	14.7	361	19.44	0.2169	325
Cricket	150	157.9	7/5.36	16.1	432	23.85	0.1818	345
Hornet	150	157.6	19/3.25	16.25	434	25.7	0.1825	342
Caterpillar	175	186	19/3.53	17.7	512	28.63	0.1547	399
Chater	200	213.2	19/3.78	18.9	587	35.4	0.1349	412
Spider	225	236.9	19/3.99	20	652	36.01	0.1211	462
Cockroach	250	265.7	19/4.22	21.1	731	40.4	0.1083	471
Butterfly	300	322.7	19/4.65	23.25	888	48.75	0.08916	530
Moth	350	373.3	19/5.00	25	1027	56.37	0.07711	562
Drone	350	373.3	37/3.58	25.1	1029	57.45	0.07741	560
Locust	400	428.5	19/5.36	26.8	1179	64.73	0.0671	580
Centipede	400	415.2	37/3.78	26.46	1145	63.1	0.06944	616
Maybug	475	486,1	37/4,09	28,6	1342	74.01	0,05900	740
Scorpion	500	529,8	37/4,27	29,9	1460	79.98	0,05400	887
Cicada	600	628,3	37/4,65	32,6	1733	94.95	0,04500	1056
Tarantula	750	794.6	37/5.23	36.6	2191	120.1	0.03627	1320

AAC Conductor AS/NZS 1531-91 for Papua New Guinea

Code Name	Stranding and Wire Diameter	Approx. Overall Diameter	Cross- sectional Area	Approx. Mass	Calculated Breaking Load (CBL)	Equiv. Aluminium Area	D.C. Resistance at 20℃
Code Name	mm	mm	mm²	kg/km	KN	mm²	Ω/km
Leo	7/2.50	7.50	34.36	94.3	5.71	33.9	0.833
Leonids	7/2.75	8.25	41.58	113	6.72	41.1	0.689
Libra	7/3.00	9.0	49.48	135	7.98	48.9	0.579
Mars	7/3.75	11.3	77.28	211	11.8	76.3	0.370
Mercury	7/4.50	13.5	111.3	304	16.9	110	0.258
Moon	7/4.75	14.3	124.0	339	18.9	122	0.232
Neptune	19/3.25	16.3	157.6	433	24.7	154	0.183
Orion	19/3.50	17.5	182.8	503	28.7	180	0.157
Pluto	19/3.75	18.8	209.8	576	31.9	206	0.137
Saturn	37/3.00	21.0	261.6	721	42.2	256	0.110
Sirius	37/3.25	22.8	307.0	845	48.2	301	0.094
Taurus	19/4.75	23.8	336.7	924	51.3	331	0.0857
Triton	37/3.75	26.3	408.5	1120	62.2	400	0.0706
Uranus	61/3.25	29.3	506.1	1400	75.2	495	0.0572
Ursula	61/3.50	31.5	586.9	1620	87.3	574	0.0493
Venus	61/3.75	33.8	673.4	1860	97.2	659	0.0429

GOST 839-80 Type ACP Wire, Greased All Aluminium Conductor & Type A Wire for Russia, Ukraine, Azerbaijan, Georgia, Armenia, Uzbekistan, Kazakhstan, Mongolia

Type ACP Wire Nominal Corss-section	Number of Wires	Wire Diameter	Calculated Cross-section	Overall Diameter	D.C. Resistance at 20	Min. Breaking Load	Conductor Weight	Grease Weight
mm2		mm	mm2	mm	Ω/km		kg/km	kg/km
10	7	1,35	10,0	4,05	2,8631	1950	27,4	–
16	7	1,70	15,9	5,10	1,8007	3021	43,0	0,5
25	7	2,13	24,9	6,40	1,1498	4500	68,0	0,5
35	7	2,50	34,3	7,50	0,8347	5913	94,0	0,5
40	7	2,70	40,0	8,09	0,7157	6800	109,4	–
50	7	3,00	49,5	9,00	0,5784	8198	135,0	0,5
63	7	3,39	63,0	10,16	0,4544	10390	172,3	–
70	7	3,55	69,3	10,70	0,4131	11288	189,0	1,0
95	7	4,10	92,4	12,30	0,3114	14784	252,0	1,0
100	19	2,59	100,0	12,94	0,2877	17000	274,9	–
120	19	2,80	117,0	14,00	0,2459	19890	321,0	16
125	19	2,89	125,0	14,47	0,2301	21250	343,6	–
150	19	3,15	148,0	15,80	0,1944	24420	406,0	20
160	19	3,27	160,0	16,37	0,1798	26400	439,8	–
185	19	3,50	182,8	17,50	0,1574	29832	502,0	25
200	19	3,66	200,0	18,30	0,1438	32000	549,7	–
240	19	4,00	238,7	20,00	0,1205	38192	655,0	33
250	19	4,09	250,0	20,47	0,1150	40000	687,1	–
300	37	3,15	288,3	22,10	0,1000	47569	794,0	54
315	37	3,29	315,0	23,05	0,0915	51970	867,5	–
350	37	3,45	345,8	24,20	0,0833	57057	952,0	65
400	37	3,66	389,2	25,60	0,0740	63420	1072,0	73
450	37	3,90	449,1	27,30	0,0642	71856	1206,0	84
500	37	4,15	500,4	29,10	0,0576	80000	1378,0	94
550	61	3,37	544,0	30,30	0,0529	89760	1500,0	117
560	37	4,39	560,0	30,73	0,0531	89600	1542,2	–
600	61	3,50	586,8	31,50	0,0491	95632	1618,0	126
630	61	3,63	630,0	32,64	0,0458	100800	1738,4	–
650	61	3,66	641,7	32,90	0,0450	104575	1771,0	138
700	61	3,80	691,7	34,20	0,0417	112725	1902,0	149
710	61	3,85	710,0	34,65	0,0406	113600	1959,2	–
750	61	3,95	747,4	35,60	0,0386	119584	2062,0	161

Type a Wire Nominal Corss-section	Number of Wires	Wire Diameter	Calculated Cross-section	Overall Diameter	D.C. Resistance at 20	Min. Breaking Load	Conductor Weight
mm2		mm	mm2	mm	Ω/km		kg/km
10	7	1,35	10,0	4,05	2,8631	1950	27,4
16	7	1,70	15,9	5,10	1,8007	3021	43,0
25	7	2,13	24,9	6,40	1,1498	4500	68,0
35	7	2,50	34,3	7,50	0,8347	5913	94,0
40	7	2,70	40,0	8,09	0,7157	6800	109,4
50	7	3,00	49,5	9,00	0,5784	8198	135,0
63	7	3,39	63,0	10,16	0,4544	10390	172,3
70	7	3,55	69,3	10,70	0,4131	11288	189,0
95	7	4,10	92,4	12,30	0,3114	14784	252,0
100	19	2,59	100,0	12,94	0,2877	17000	274,9
120	19	2,80	117,0	14,00	0,2459	19890	321,0
125	19	2,89	125,0	14,47	0,2301	21250	343,6
150	19	3,15	148,0	15,80	0,1944	24420	406,0
160	19	3,27	160,0	16,37	0,1798	26400	439,8
185	19	3,50	182,8	17,50	0,1574	29832	502,0
200	19	3,66	200,0	18,30	0,1438	32000	549,7
240	19	4,00	238,7	20,00	0,1205	38192	655,0
250	19	4,09	250,0	20,47	0,1150	40000	687,1
300	37	3,15	288,3	22,10	0,1000	47569	794,0
315	37	3,29	315,0	23,05	0,0915	51970	867,5
350	37	3,45	345,8	24,20	0,0833	57057	952,0
400	37	3,66	389,2	25,60	0,0740	63420	1072,0
450	37	3,90	449,1	27,30	0,0642	71856	1206,0
500	37	4,15	500,4	29,10	0,0576	80000	1378,0
550	61	3,37	544,0	30,30	0,0529	89760	1500,0
560	37	4,39	560,0	30,73	0,0531	89600	1542,2
600	61	3,50	586,8	31,50	0,0491	95632	1618,0
630	61	3,63	630,0	32,64	0,0458	100800	1738,4
650	61	3,66	641,7	32,90	0,0450	104575	1771,0
700	61	3,80	691,7	34,20	0,0417	112725	1902,0
710	61	3,85	710,0	34,65	0,0406	113600	1959,2
750	61	3,95	747,4	35,60	0,0386	119584	2062,0

PDF Download

Why Choose Us

Contact Us Immediately

Contact Us

Product Category

hot-sale product

570-AL4 ASTER 570 Cable Almelec
Conductors in aluminium alloy (AAAC)
Cable Almelec 148 mm2
Cable Almelec 34.4 mm2
Cable Almelec 93 mm2
Cable Almelec 54.6 mm2
Cable Almelec 570 mm2

Dead Soft Annealed (DSA) Copper Clad steel (CCS) conductors are a concentric lay-stranded construction. The CCS strands are a 40% conductivity grade of material using a low carbon steel core rendering greater flexibility to enable easier handling during installation.

Galvanized Clad steel wire earth wire/stay wire/guy wire/spacer cable (GSW)

Overhead ground wire or static wire on transmission lines

Pole or structure guy wires

Messenger cable for field-erected aerial cable

Galvanized steel wire

Aluminum Conductor, Aluminum Alloy Reinforced, Bare

Bare Overhead Transmission Cable

Primary and Secondary Distribution Cable

About Us

Company Profile

Certification

Factory Tour
